5.2L GT350 CYLINDER HEAD LH
M-6050-M52
Retail
$1,825.00
Sold in Units of
Each (1)
Instruction Sheet
This part is in your Wish List
This part has been added to your Wish List
ATTENTION:
This part is intended as a replacement part for use only in the application(s)
identified in the product description. Installation of this part in a vehicle for
which it is not intended may violate U.S. and Canadian laws and regulations related
to motor vehicle emissions.

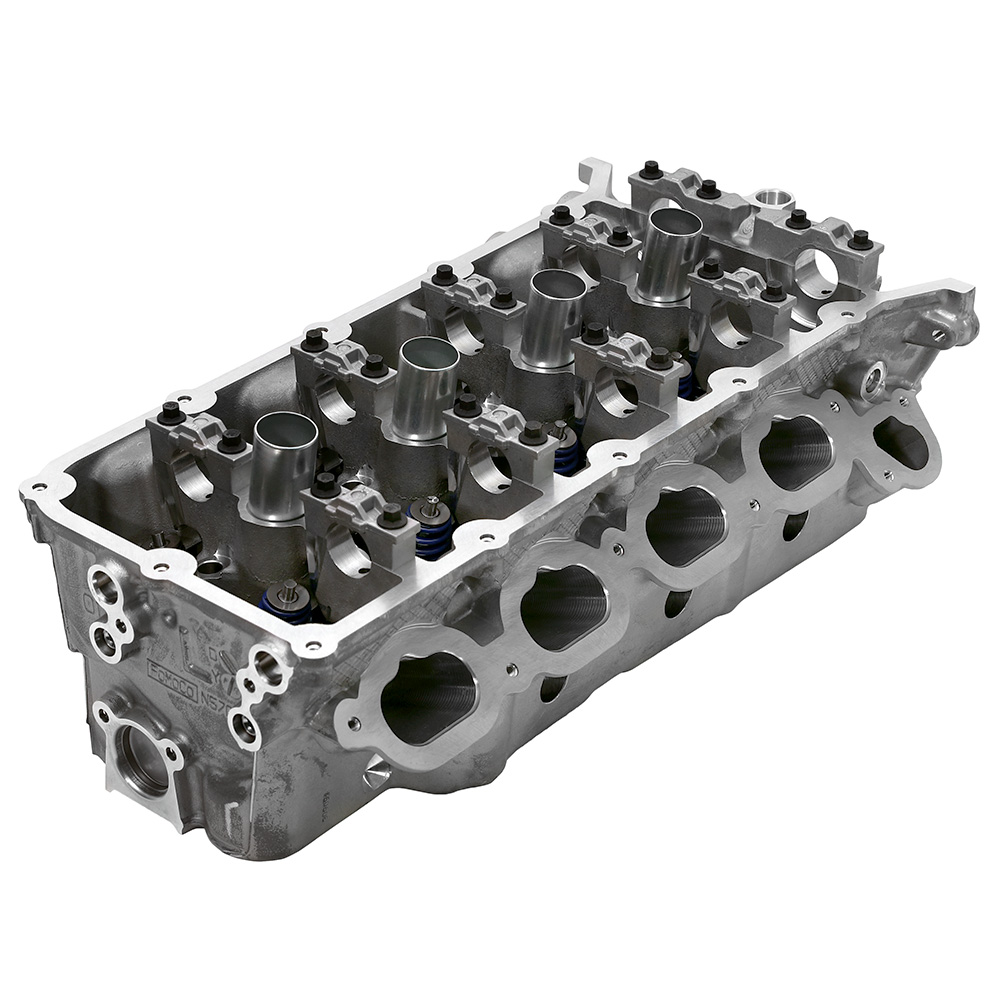

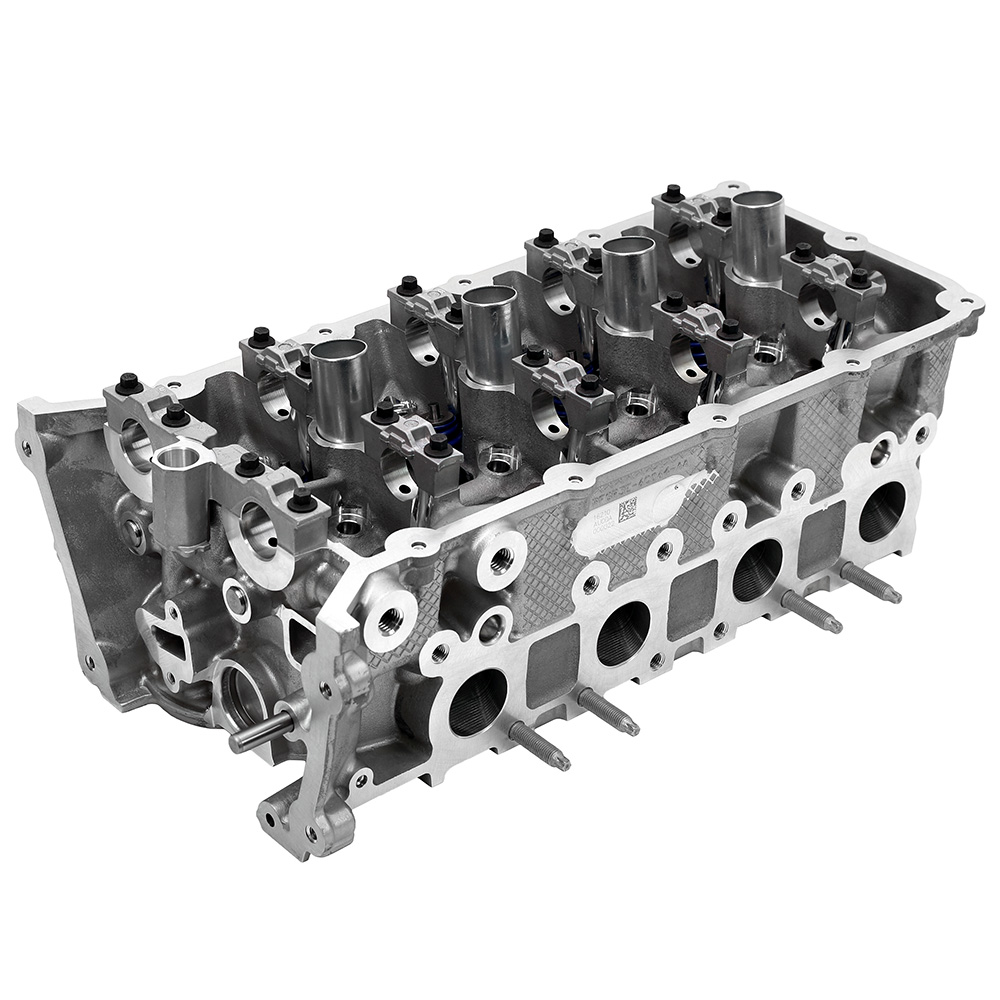

- Production left hand cylinder head for the 5.2L GT350

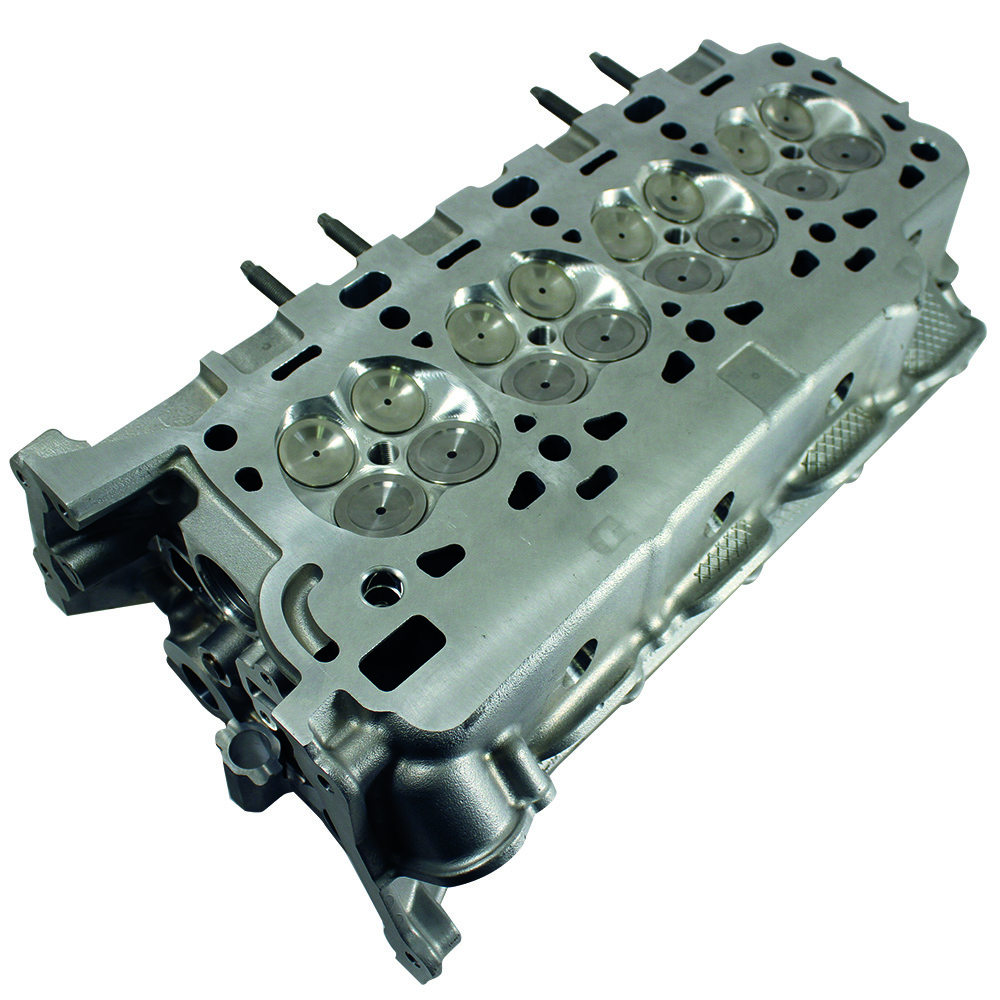

- Fully CNC ported intake ports, exhaust ports and combustion chamber
- Larger port sizing than the 2015-2017 5.0L Coyote cylinder heads
- 38.3mm intake valve and 32.5mm exhaust valve
- For reference, 2015-2017 5.0L Coyote valve sizes are 37.3mm intake, 31.8mm exhaust
- New valvetrain geometry allows for higher valve lift
- Lightweight hollow-stem intake valves and sodium-filled exhaust valves
- Loaded head assembly minus camshafts, rocker arms and lash adjusters
- Use on a 5.0L Coyote requires unique camshaft due to valvetrain geometry, see M-6550-M52 or M-6550-M52A
- Installation of 5.2L heads on 5.0L engine requires piston modification for proper piston to valve clearance.
- Requires 5.2L rocker arms and lash adjusters, see M-6564-M52
Part Type
Engine: Cylinder Heads
Instruction Sheet
Warranty Availability
Not Available
Package Dimensions
12.25" x 9.75" x 22"
Package Weight
41 lb(s)
UPC Code
756122003046
Country of Origin
Canada
