CLUTCH KIT

Fits all 1986-01 Mustang GT, 1993-98 Cobra with T-5 or T45 Transmissions.

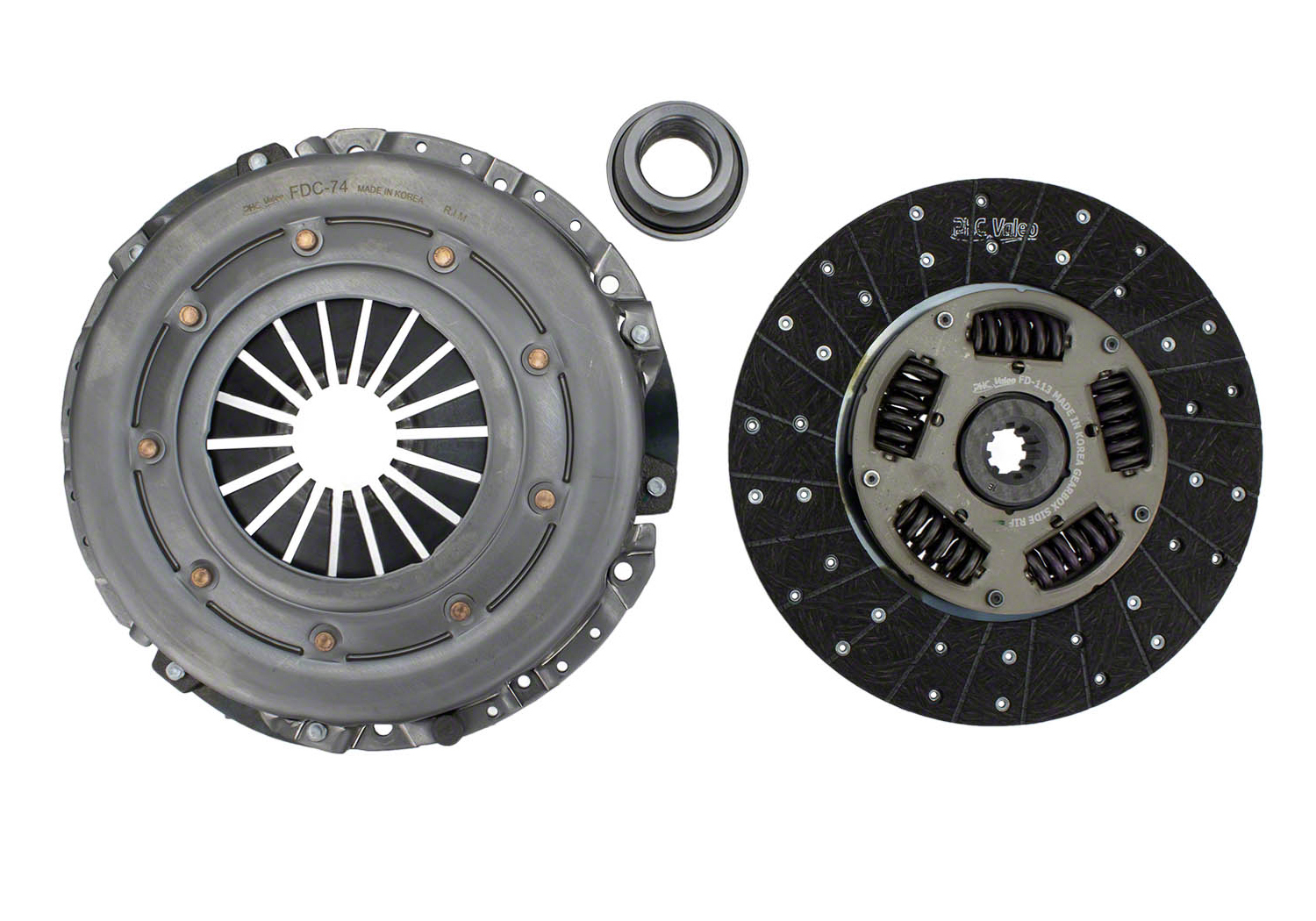

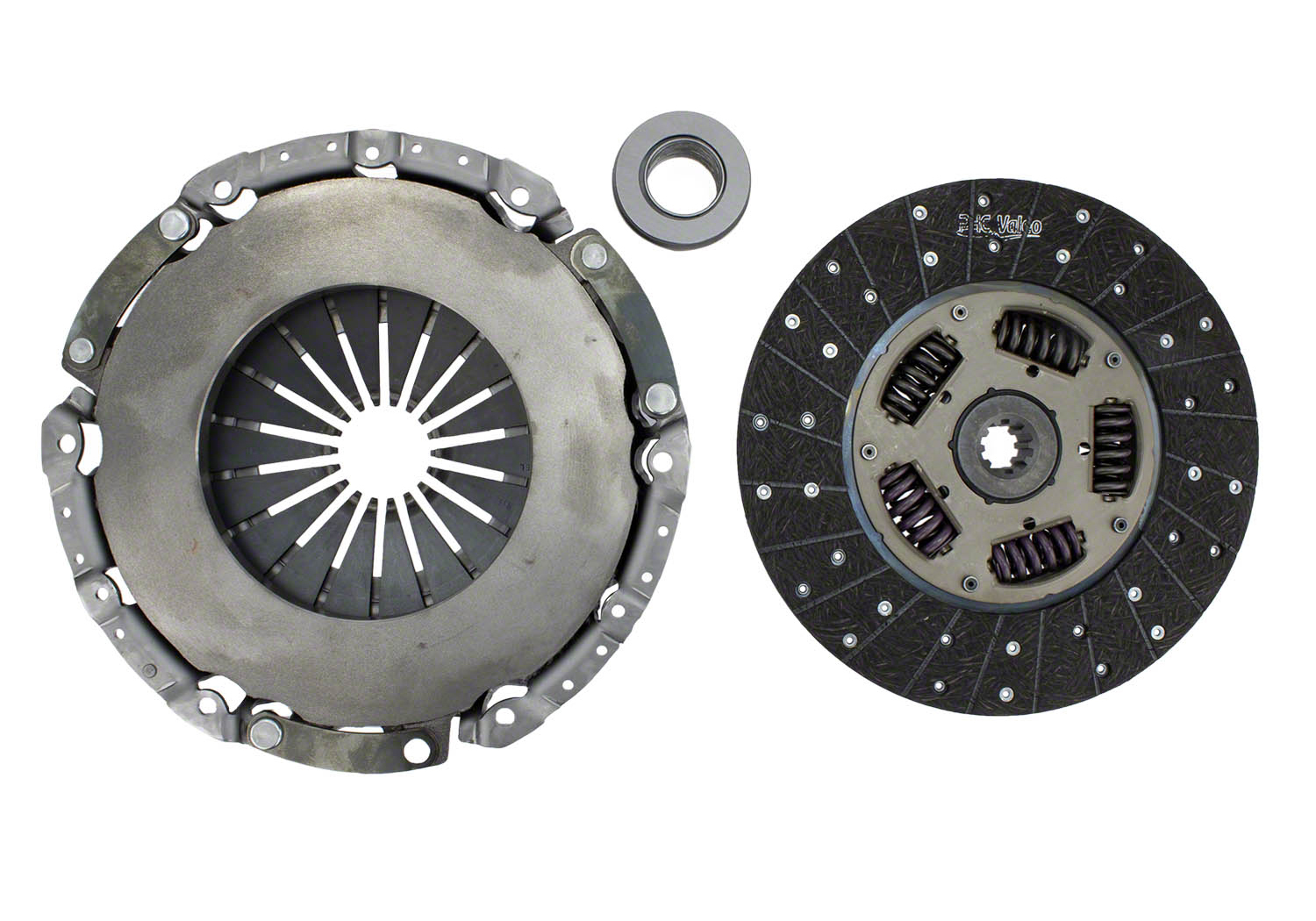

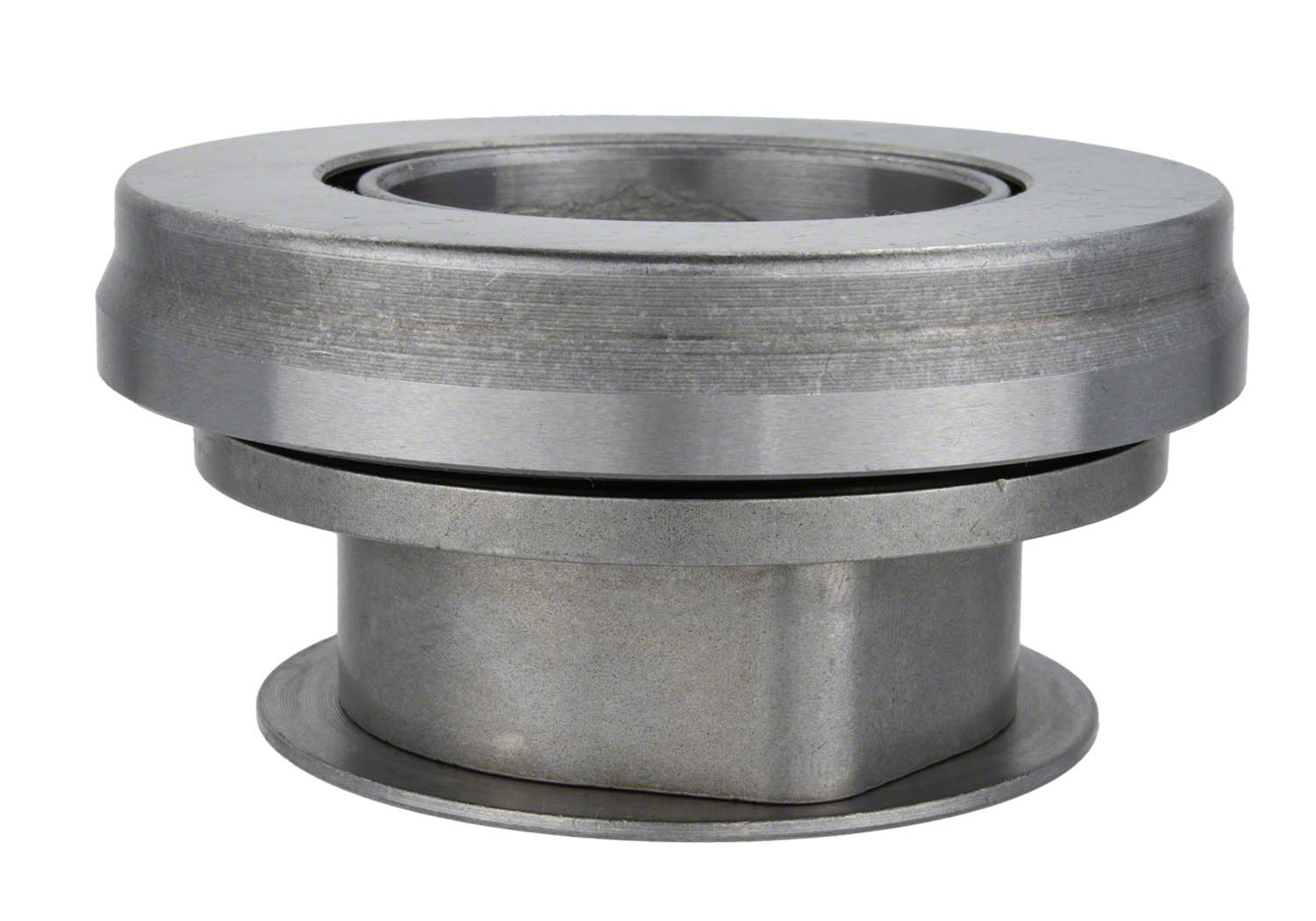

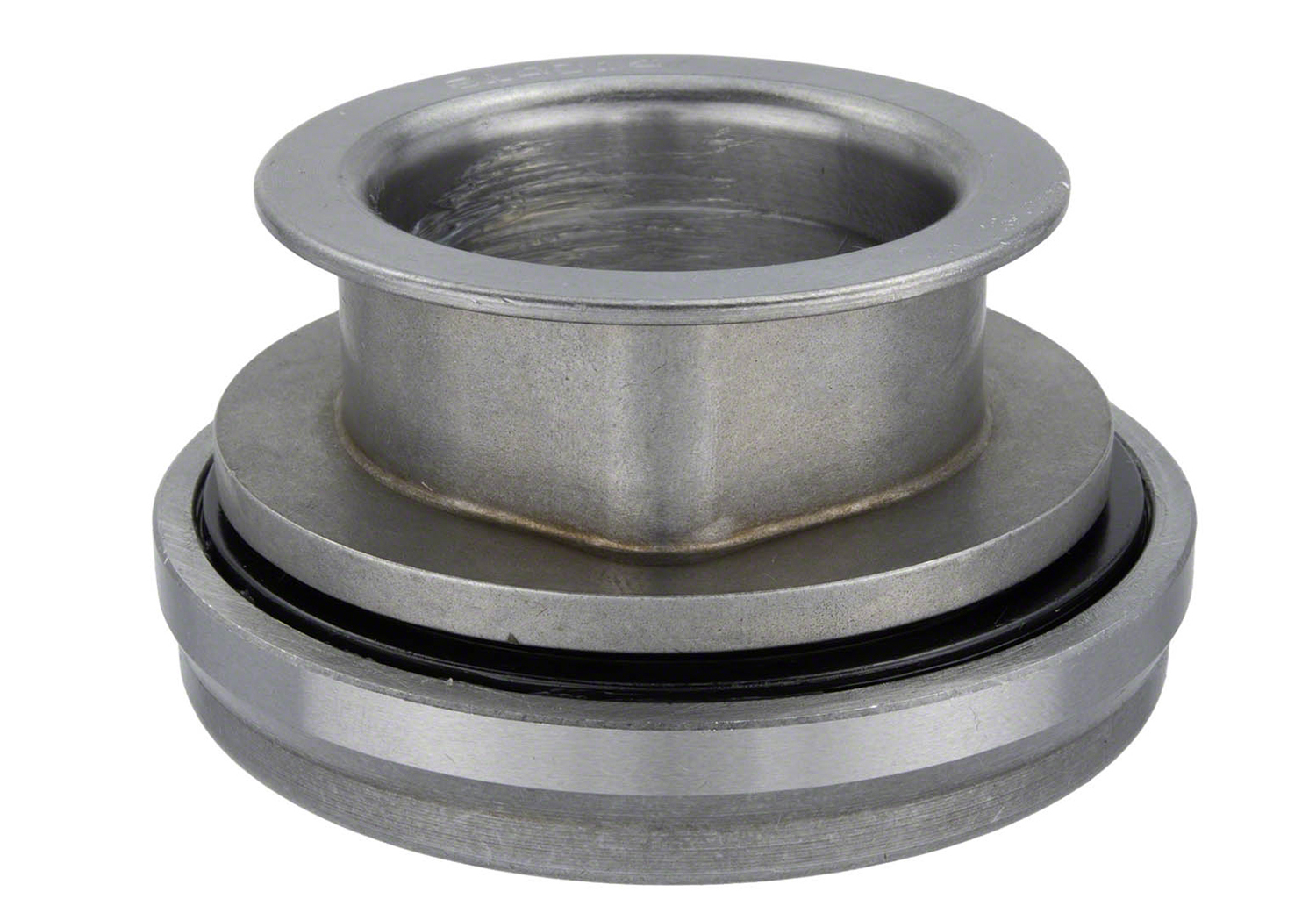

Consists of clutch disc, pressure plate and throwout bearing

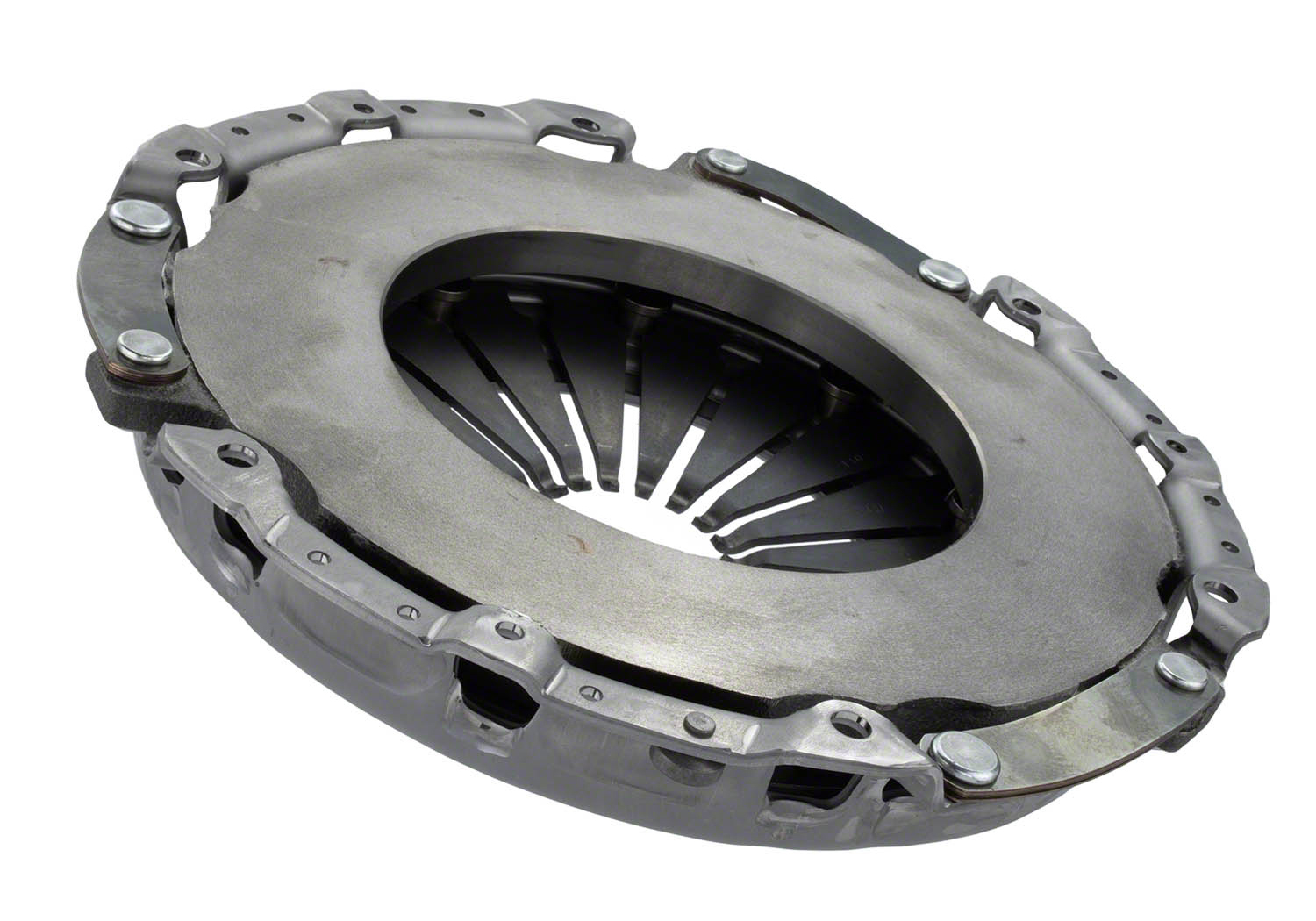

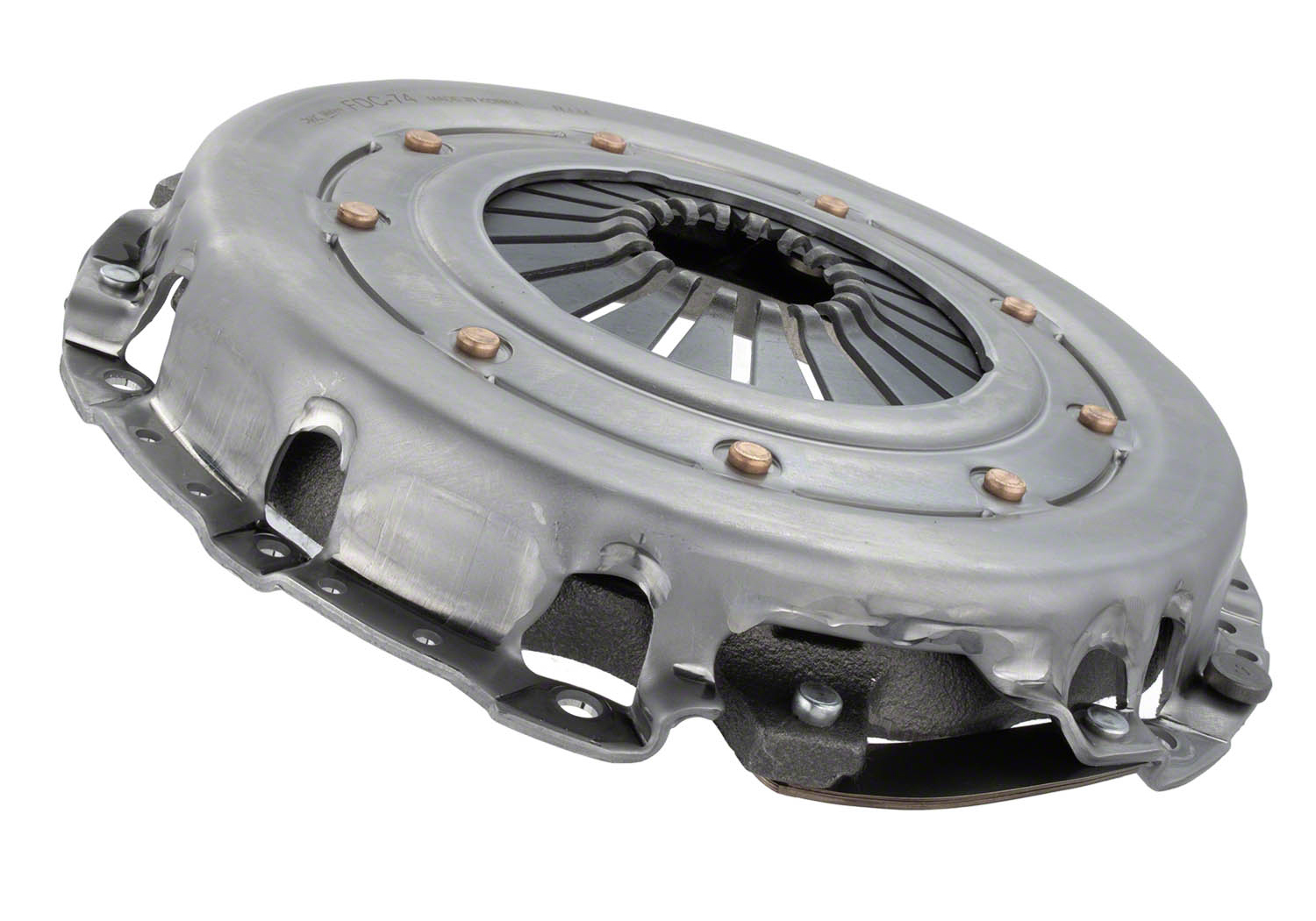

Heavy duty diaphragm type clutch assembly with approximately 40 % more capacity than stock Mustang clutch.

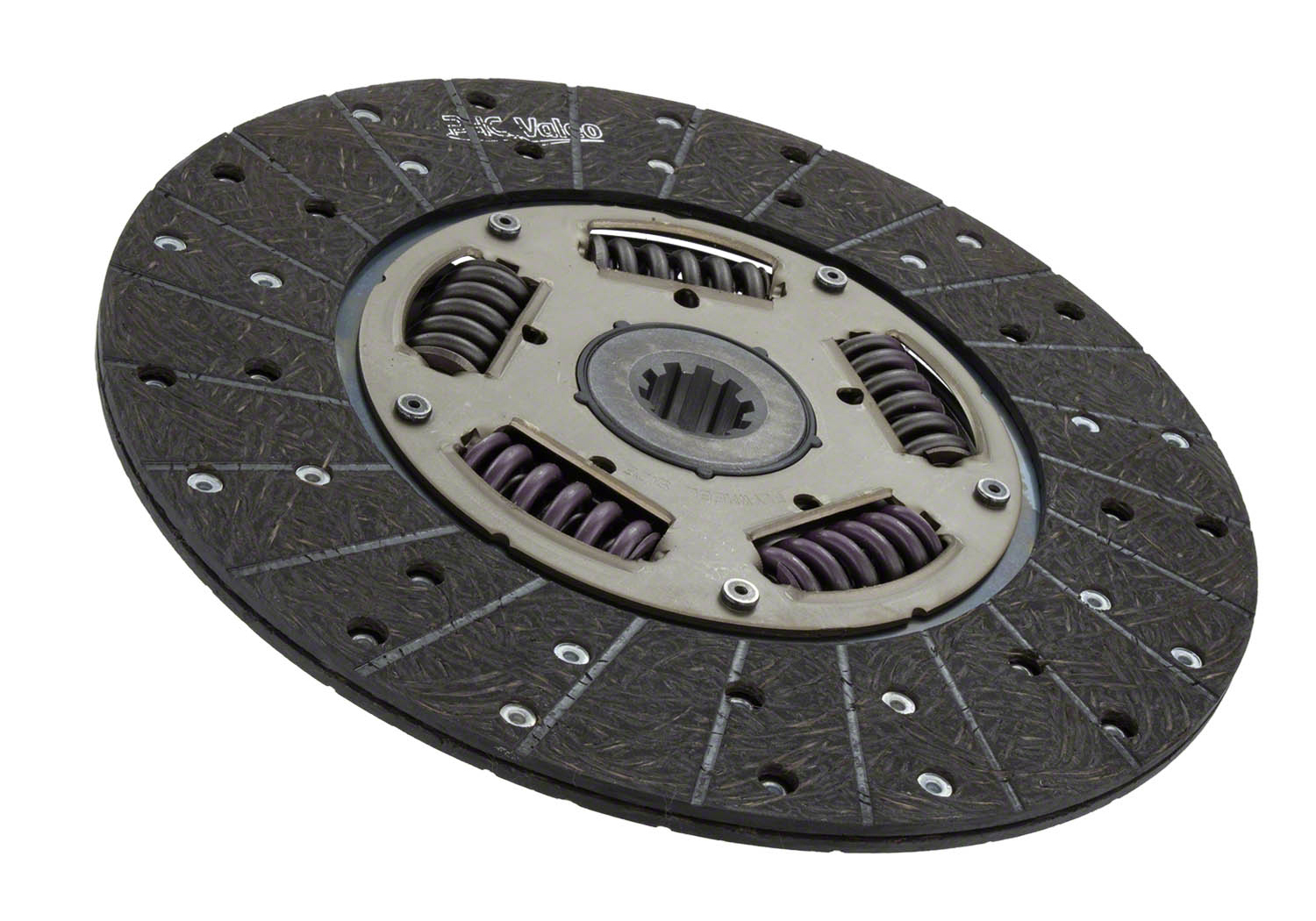

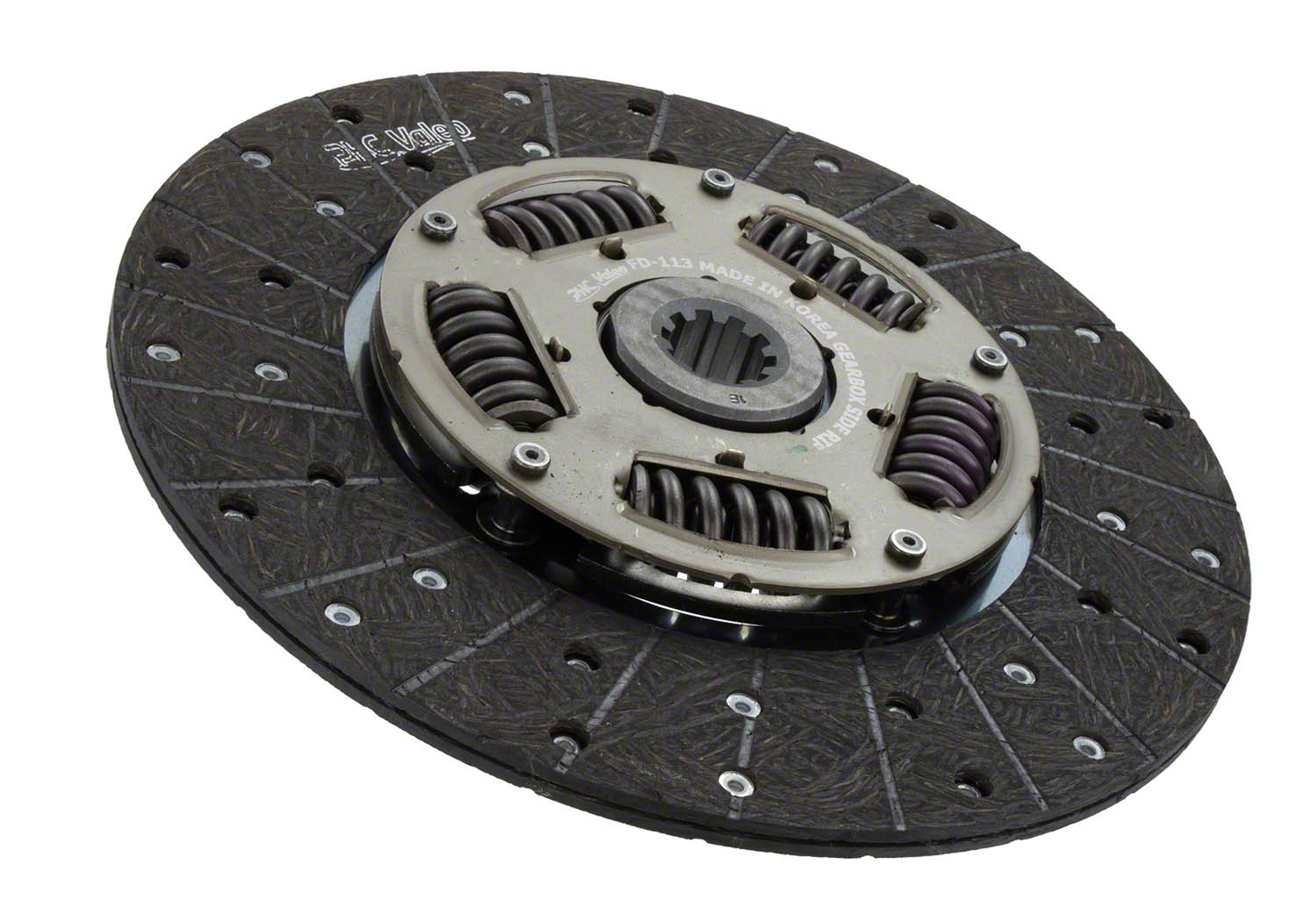

Clutch disc has 1-1/16-inch - 10 spline hub.

OK to mix and match Ford Racing clutch discs and pressure plates but do NOT install a FRPP pressure plate with a stock disc or vice-versa as disengagement problems may occur.

Metric fasteners and dowel pins must be used with 10.5" clutches M-6397-A302

Clutches have NO warranty!

Also recommended Roller Pilot Bearing M-7600-A or M-7600-B.

CLUTCHES
PART NUMBER	DESCRIPTION	ENGINE	DIAMETER	TECHNICAL INFORMATION
M-7550-X302 (1)(2)(3)	Disc	V-8	10.5"	HD disc with carbon/copper lining on flywheel side and carbon lining on pressure plate side.
M-7550-T302 (1)3	Disc	V-8	10.5"	HD disc with carbon/copper lining on flywheel side and carbon lining on pressure plate side. Designed for 26 spline shaft on M-7003-R58C, and M-7003-R58H transmissions. Will work with M-7563-A302N/B302/C302N/D302 pressure plates.
M-7563-B302 (1)(3)(4)	Pressure Plate	V-8	10.5"	HD diaphragm type with centrifugal assist. Has approx. 25% more capacity than stock Mustang unit. Cast iron plate.
M-7560-A302N (1)(2)(3)(4)	Mustang HD Kit	V-8	10.5"	Consists of M-7550-A302N disc, M-7563-A302N pressure plate and D9ZZ-7548-A throwout bearing.
M-7560-C302N (1)(2)(3)(4)	Mustang HD "King Cobra" Kit	V-8	10.5"	Consists of M-7550-A302N disc, M-7563-C302N pressure plate and D9ZZ-7548-A throwout bearing.
M-7560-T46 (1)	11" Clutch Kit	4.6L	11"	Kit contains 11" clutch disc with 26 spline hub and pressure plate. Clutch disc with carbon/copper lining on flywheel side and carbon lining on pressure plate side. Centrifugal assist design pressure plate with 25% more torque capacity then production Cobra. Used when installing M-7003-R58C and M-7003-R58H transmissions into 1996-04 4.6L Mustangs with production 11" flywheel or Ford Racing flywheels M-6375-F46, M-6375-G46 or M-6375-R00.

NOTES: (1) Clutches have NO warranty! (2) All clutch discs have 1.0625"-10 spline hub. (3) Fits all 1986-01 Mustang GT, 1993-98 Cobra with T-5 or T45 Transmissions. 2001-04 Mustang GT with 3650 transmission and 1999-03 Cobra uses an 11" clutch. OK to mix and match Ford Racing clutch discs and pressure plates but do NOT install a FRPP pressure plate with a stock disc or vice-versa as disengagement problems may occur. Installation of 10.5" clutch assemblies on 1979-85 vehicles equipped with 10" clutch requires new flywheel (see page 116). Metric fasteners and dowel pins must be used with 10.5" clutches. 4 Requires metric pressure plate bolts N602549-S51M and alignment dowel pins D1FZ-6397-B. Ford Racing kit M-6397-A302 (see page 116).
