2017-2018 F-150 RAPTOR BEAD-LOCK WHEEL KIT

2017-2018 F-150 RAPTOR BEAD-LOCK WHEEL KIT
M-1007-W1785B
Retail
$780.00
Sold in Units of
Each (1)
Instruction Sheet
Not Available
Sign in to add to wish list
  • Fits: 2017-2018 F-150 Raptor
  • The Bead-Lock Wheel Kit includes everything needed to upgrade your base Raptor wheels to have performance off-road bead-locking capability.
  • Off-road proven in all of the 2016 Best in the Desert series racing events and in the 2016 Baja 1000
  • Wheel is finished in a matte black paint finish, clear coated to OEM standards and the trim ring is finished in a magnetic grey paint finish, clear coated to OEM standards

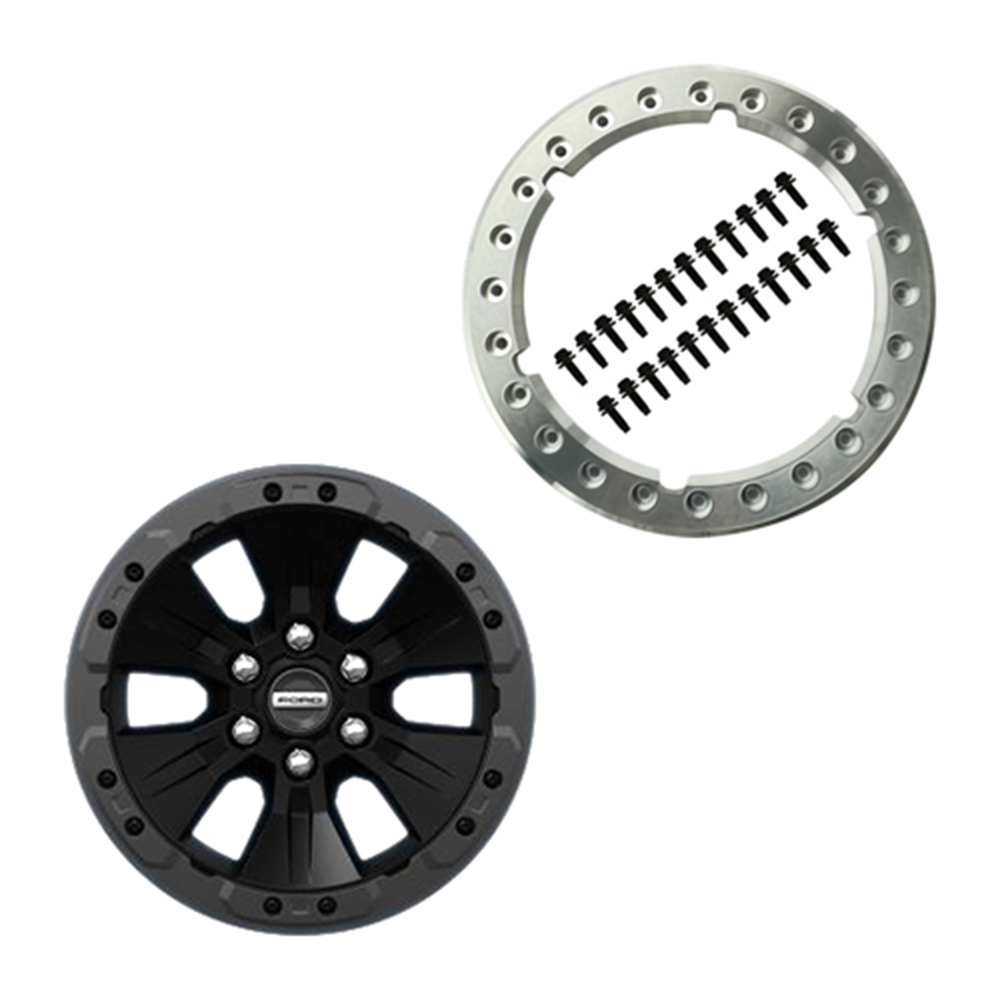

  • Kit Includes:
    • 17" Forged aluminum bead-lock capable wheel
    • Factory forged aluminum trim ring
    • Unique "FORD" Raptor center cap
    • Ford Performance Bead-lock ring kit M-1021-F15RB
  • 17" x 8.5" wide
  • 6-lug, 135mm bolt circle
  • 34 mm offset
  • 150 mm backspacing
  • Use with M-1180-B TPMS Sensor and Tool kit
  • Shown with optional Ford Performance 2015-2017 F-150 Lug Nut Kit M-1012-FA

Note: Bead-lock configuration is for off-road use only

Part Type
Chassis: Wheels
Warranty Availability
Not Available
Package Dimensions
22" x 12" x 22"
Package Weight
48.05 lb(s)
UPC Code
756122006740
Country of Origin
China
