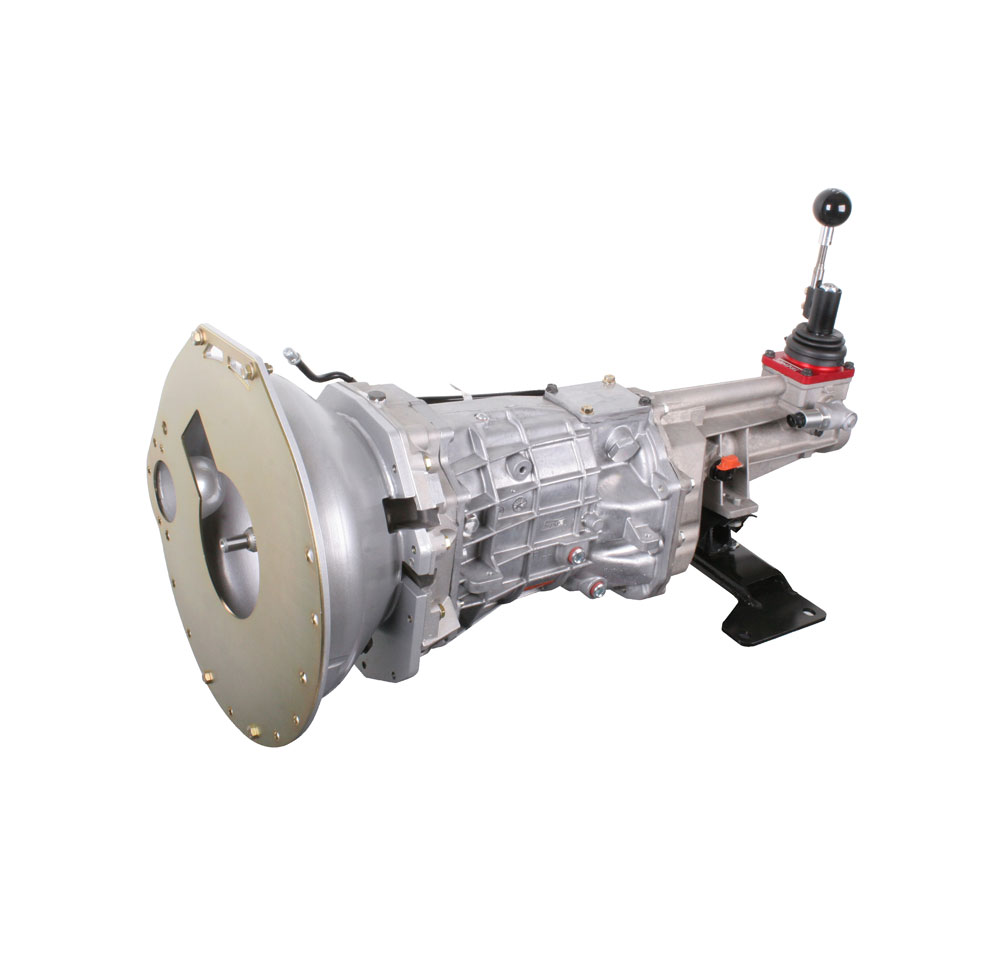

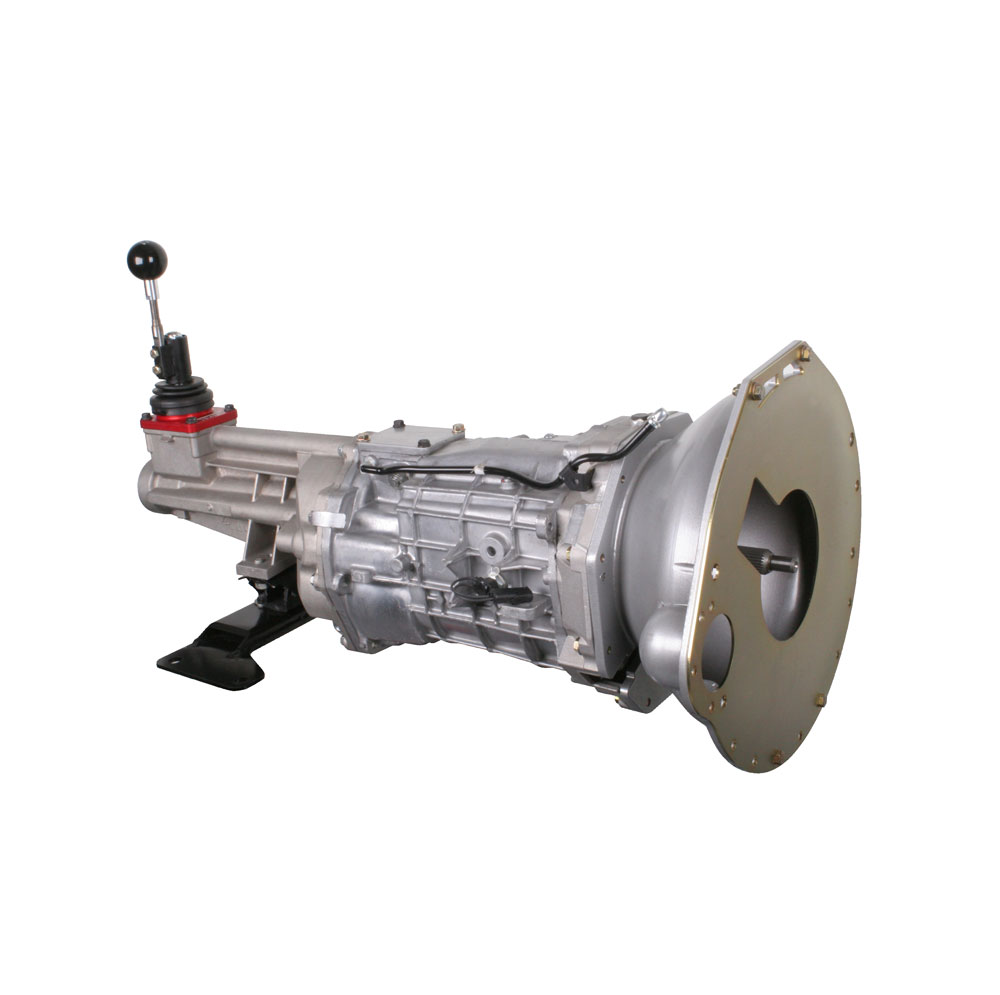

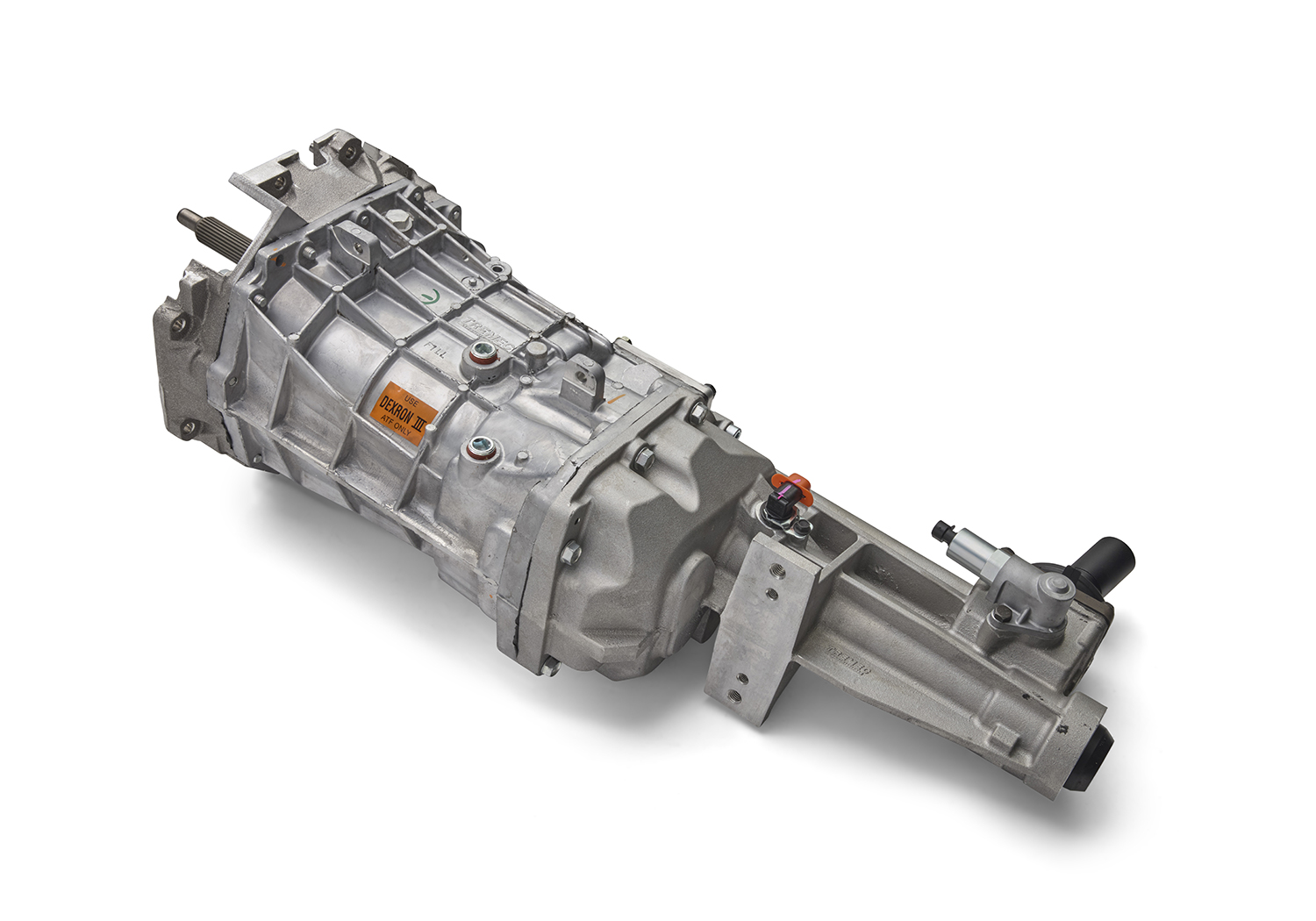

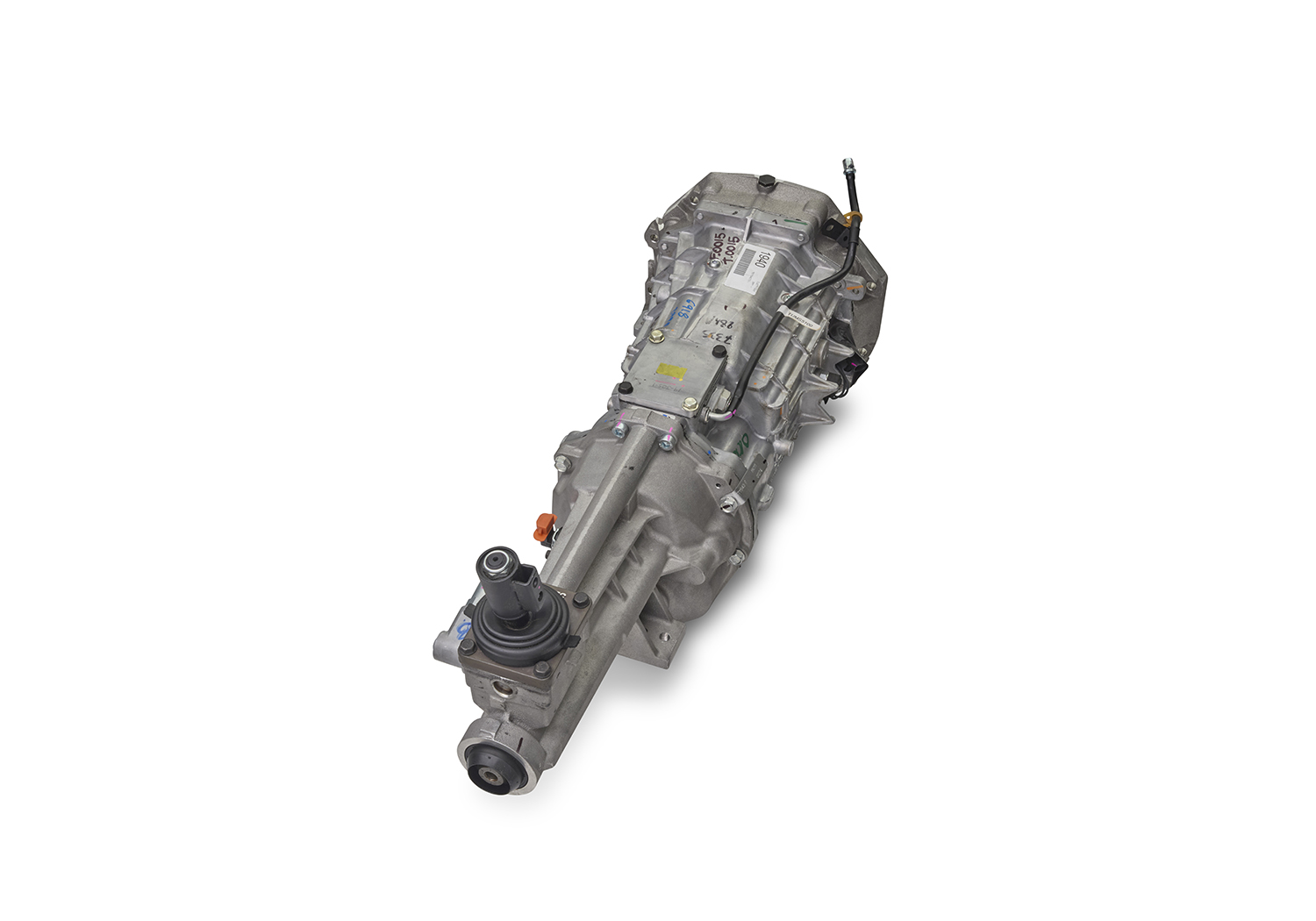

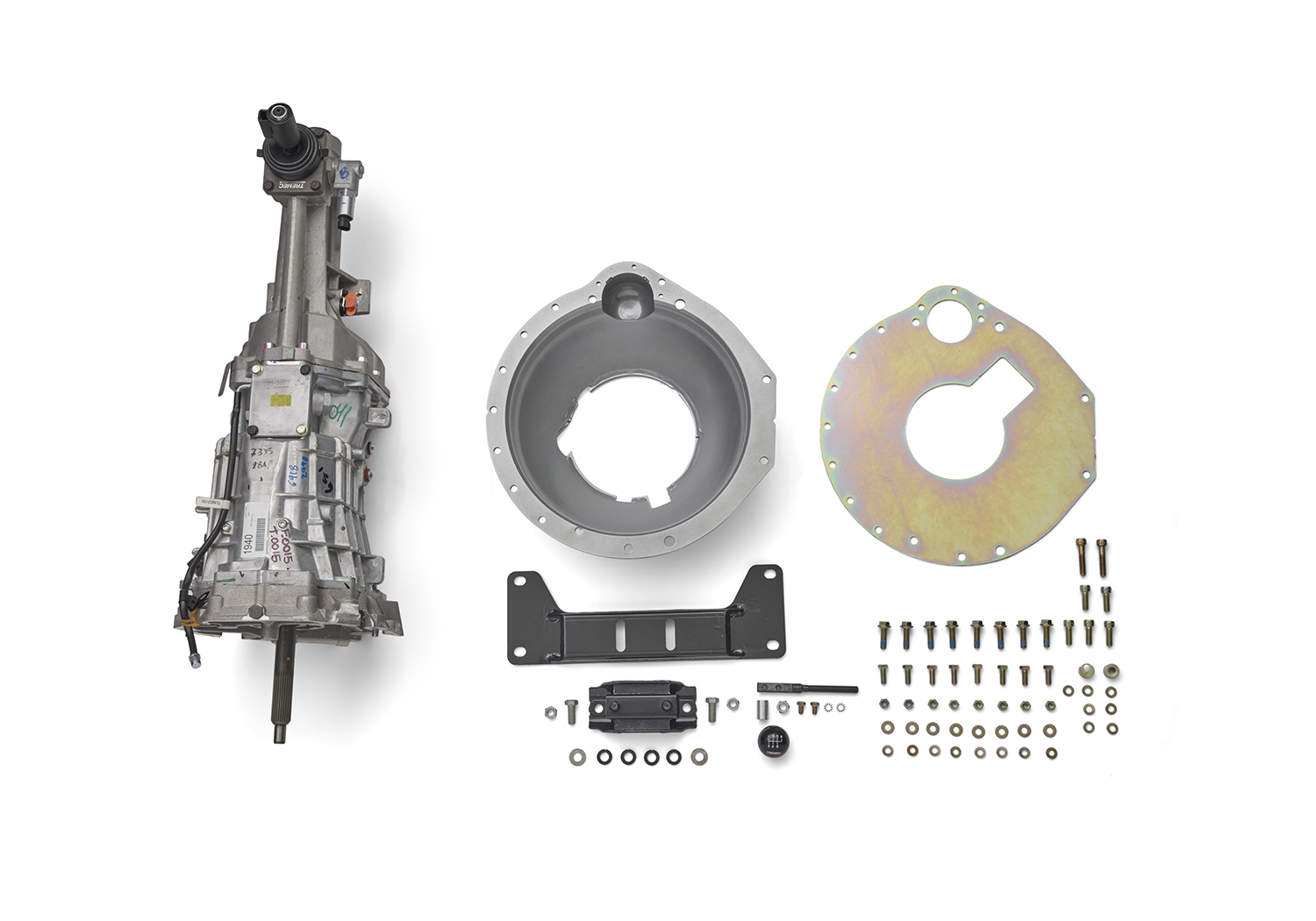

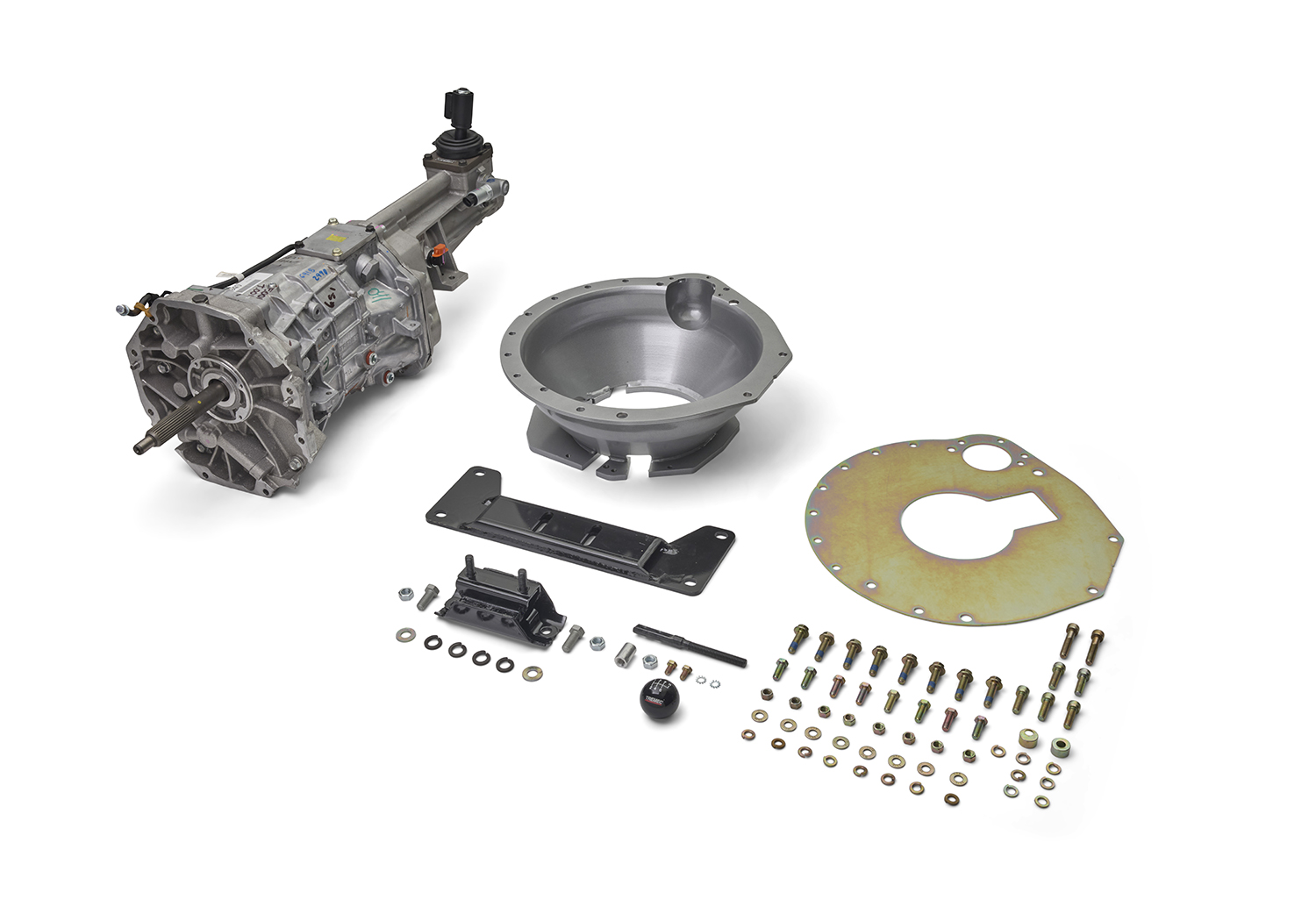

TREMEC MAGNUM XL TRANSMISSION KIT

TREMEC MAGNUM XL TRANSMISSION KIT
TREMEC MAGNUM XL TRANSMISSION KIT
TREMEC MAGNUM XL TRANSMISSION KIT
M-7003-M6XL
Sold in Units of
Each (1)
Instruction Sheet
Not Available
Sign in to add to wish list
WARNING:
This part is designed and intended for competition use only or off-highway use only. It should not be installed on a vehicle that is driven on public roads and highways. Installation of this part on a vehicle driven on public roads and highways is likely to violate U.S. and Canadian laws and regulations relating to motor vehicle emissions.
Fits: 2005-2014 Mustang GT
  • 2.97 Gear Ratio

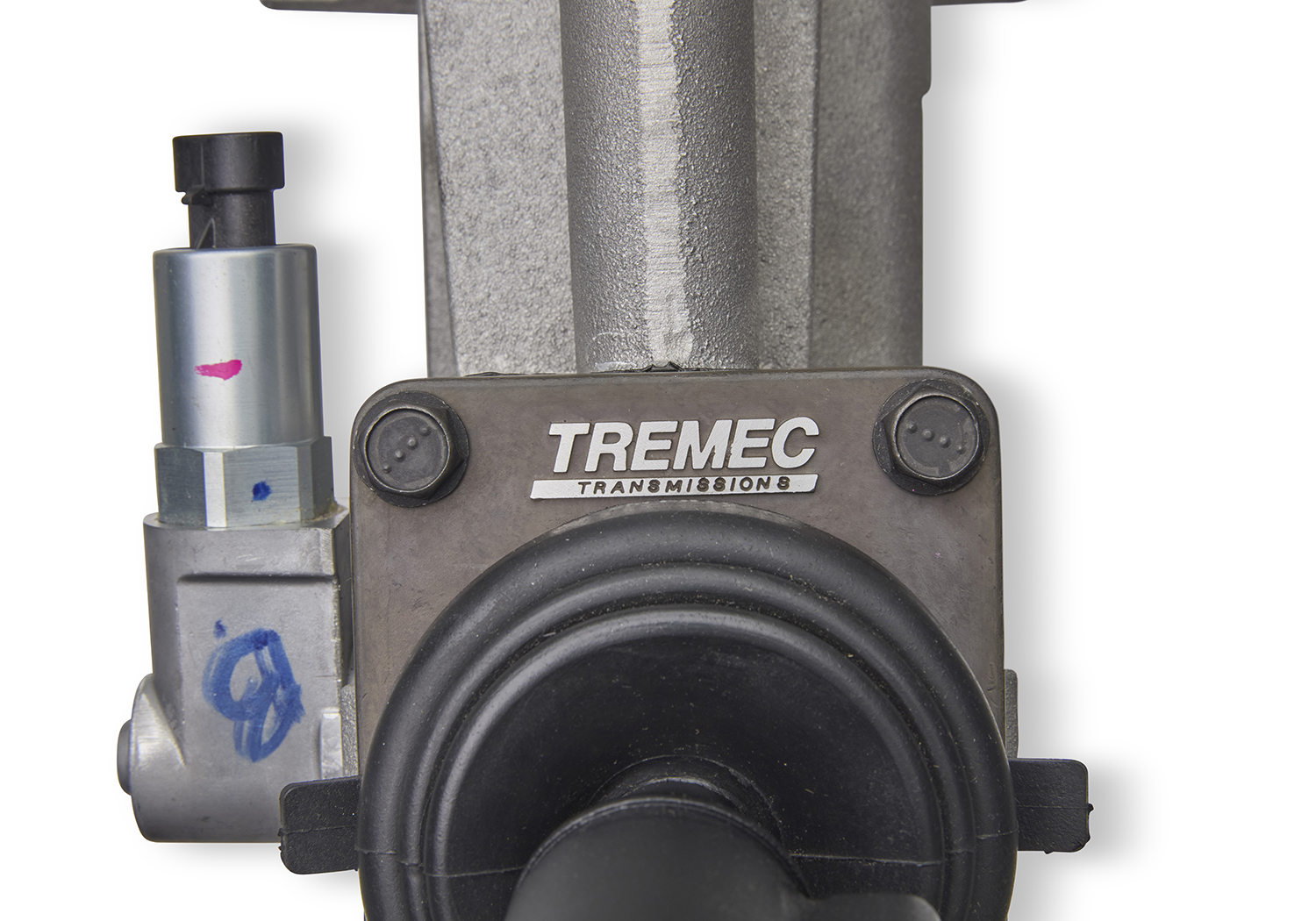

  • Trans mount isolated shifter and shift ball
  • 700 lb-ft torque capacity
  • New extended length tail section designed to eliminate the semi-remote shifter
  • SFI-approved steel bellhousing
  • Reuses the OEM hydraulic clutch relase system.

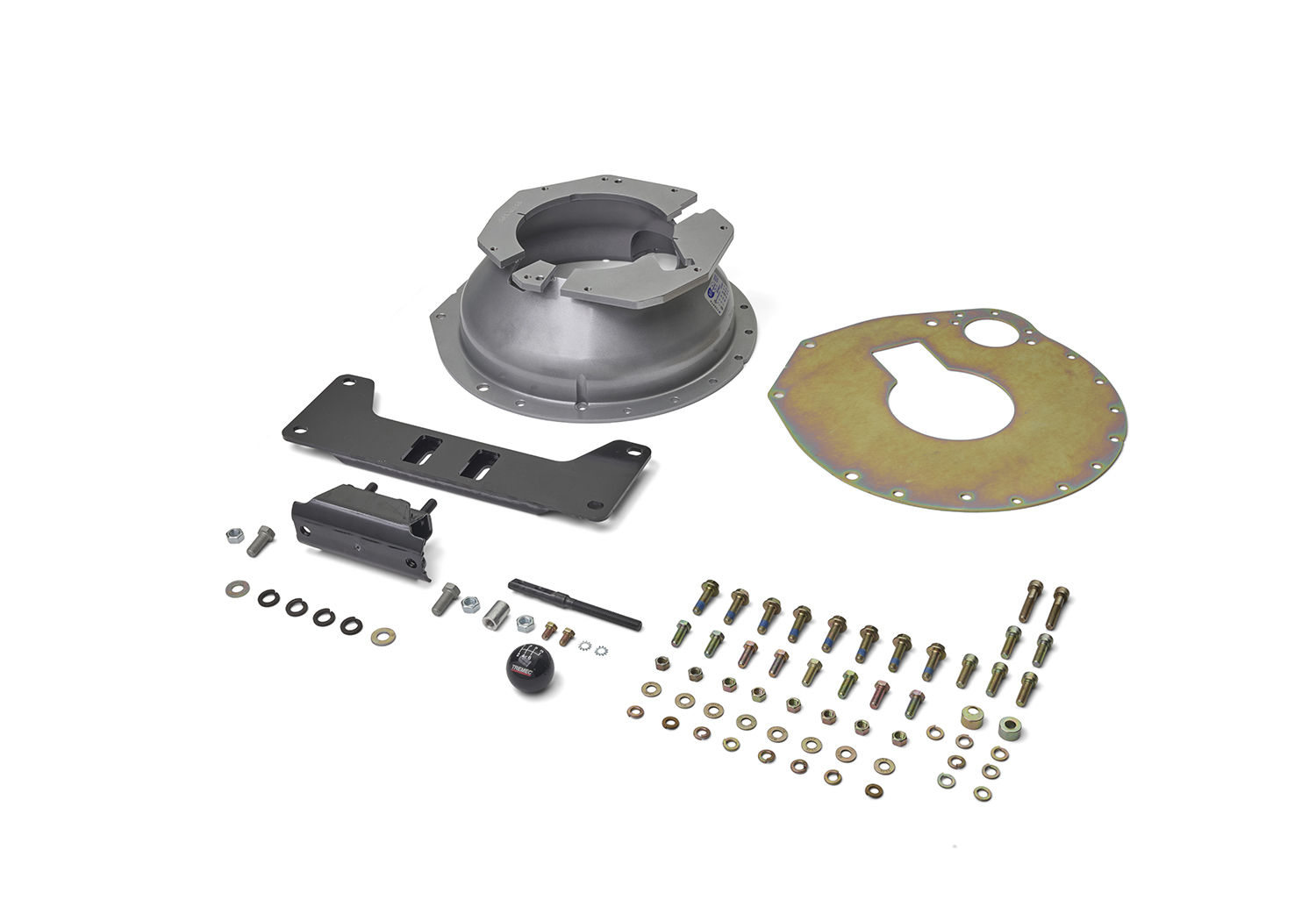

  • Includes swap-specific steel crossmember and OE-quality rubber transmission mount,

NOTES:

Users will need to convert to a 26-spline clutch disc and 1-piece 31 spline slip yoke style prop shaft (not included).

Magnum XL transmissions are designed to accept the factory hydraulic release bearing from a 2005-current Mustang GT.

GT500 bearings may also be used but will require a custom adaptor to maintain proper stack up (not included).

2005-2010 Mustang applications are a direct plug-and-play with regards to the speedometer.

2011-2014 models will require speedometer recalibration via ECU tuning or a separate plug-in signal converter from sine to hall-efffect signal, such as the Abbott Enterprises ERA or Dakota Digital SGI-1  (Not included)

2015-2019 model installation kits are not currently available.

Part Type
D-Line: Manual Trans
Warranty Availability
Not Available
Package Dimensions
46" x 22" x 25"
Package Weight
225 lb(s)
UPC Code
756122000434
Country of Origin
Mexico
