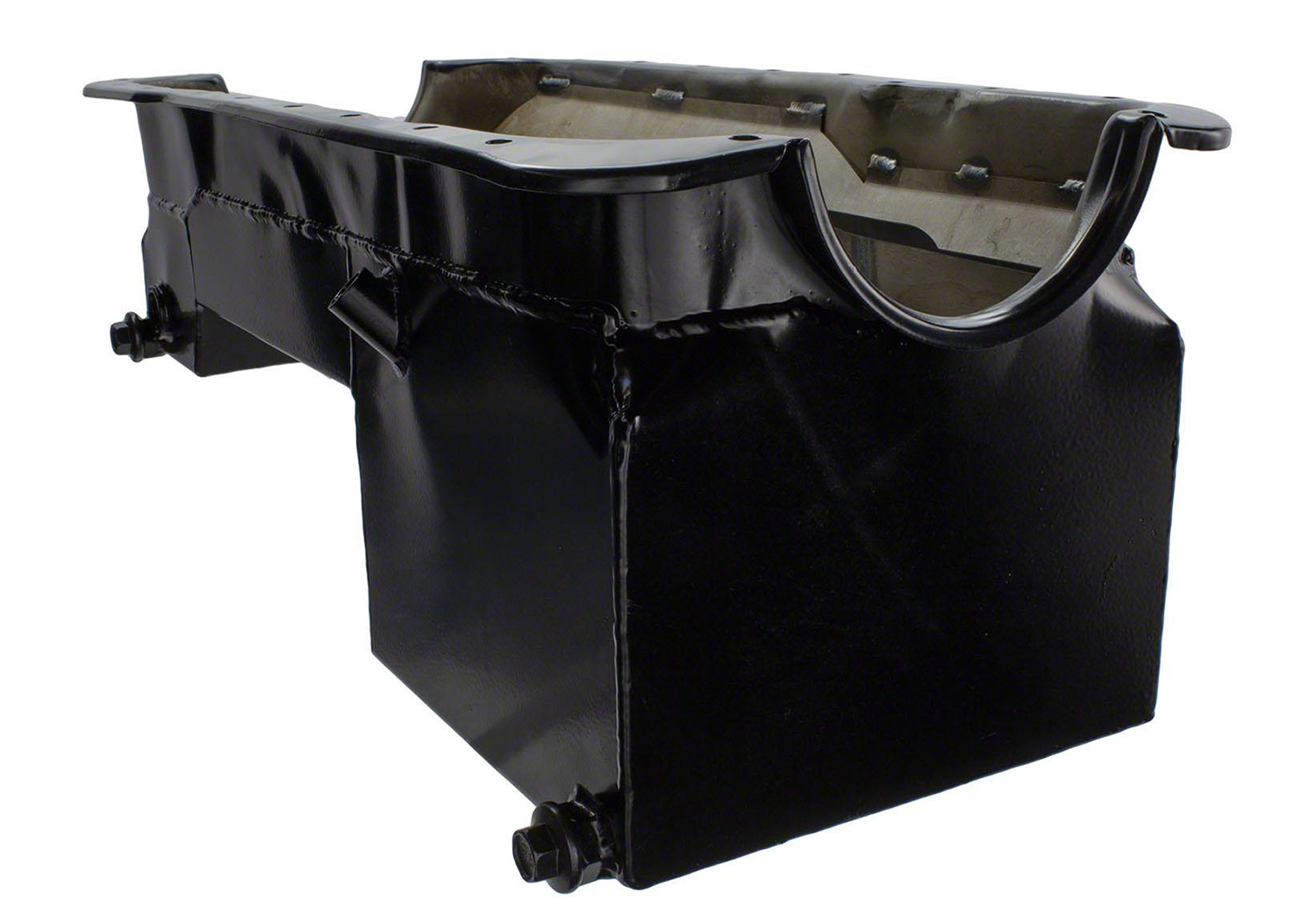

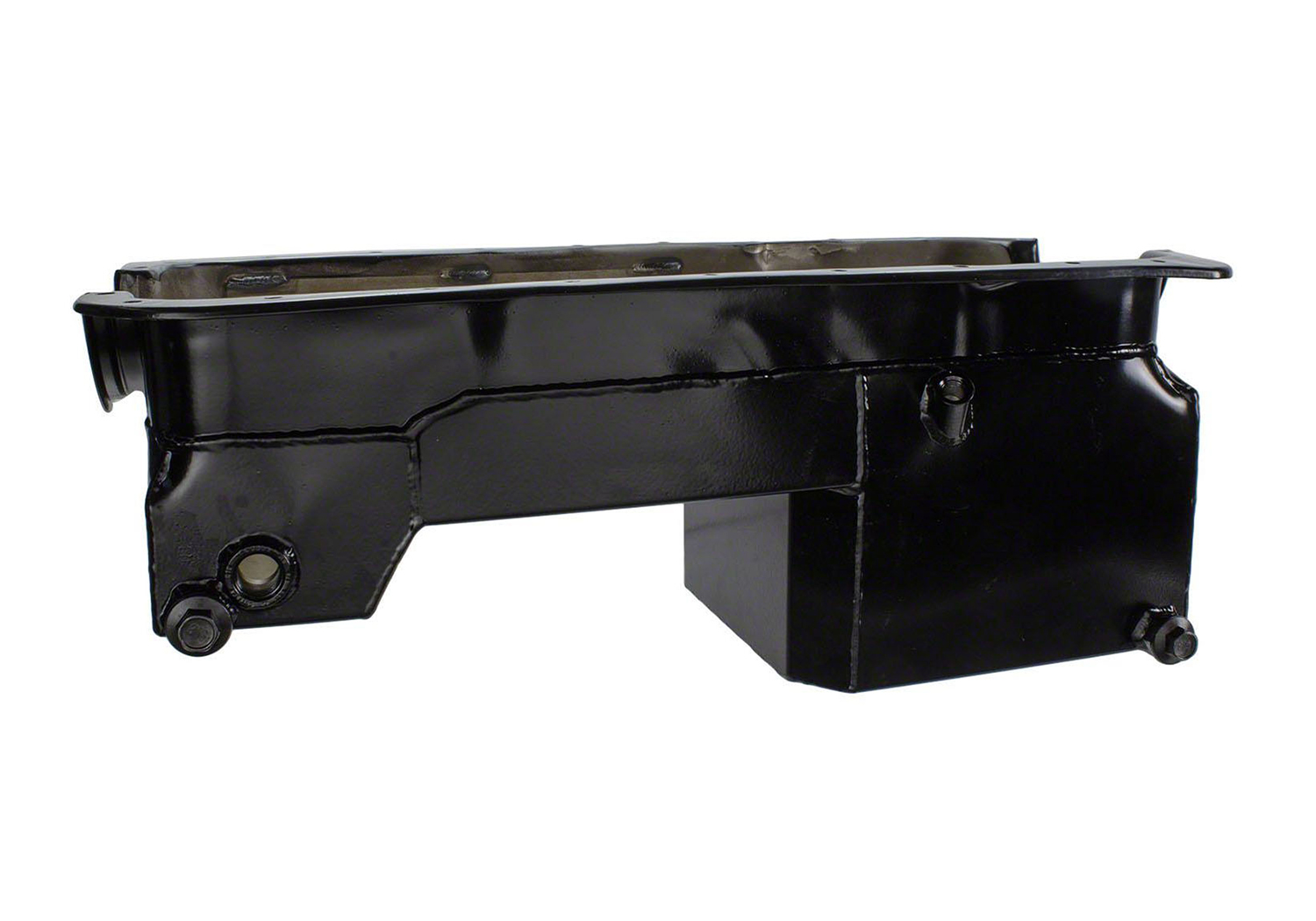

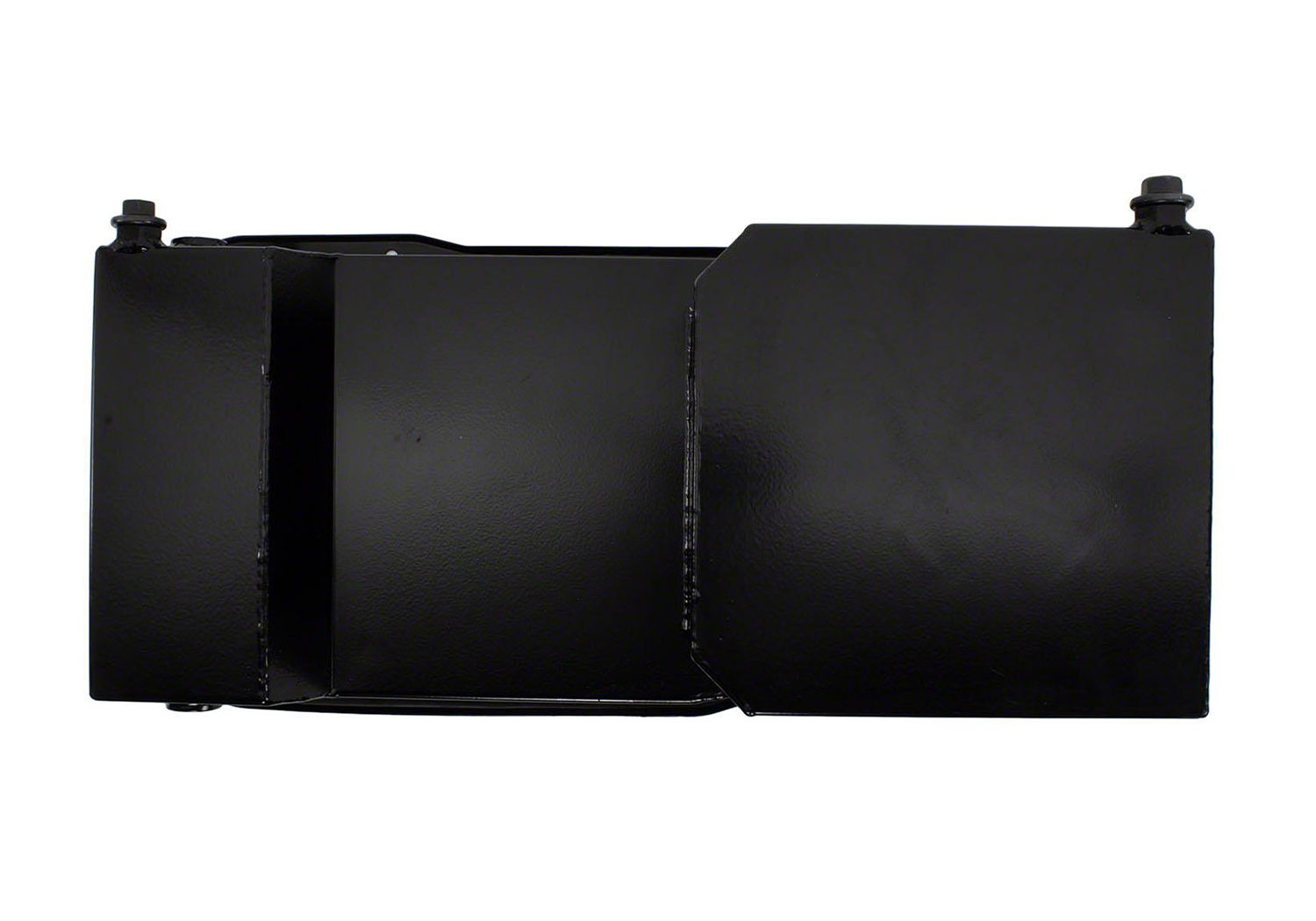

302 DEEP REAR SUMP OIL PAN

302 DEEP REAR SUMP OIL PAN
M-6675-DRS302
Retail
$560.00
Sold in Units of
Each (1)
Instruction Sheet
Not Available

Designed by Ford Performance for use on its crate engines, the M-6675-DRS302 oil pan is constructed to deliver power and durability.

Features include:

  • Full length scraper to direct oil away from the crankshaft

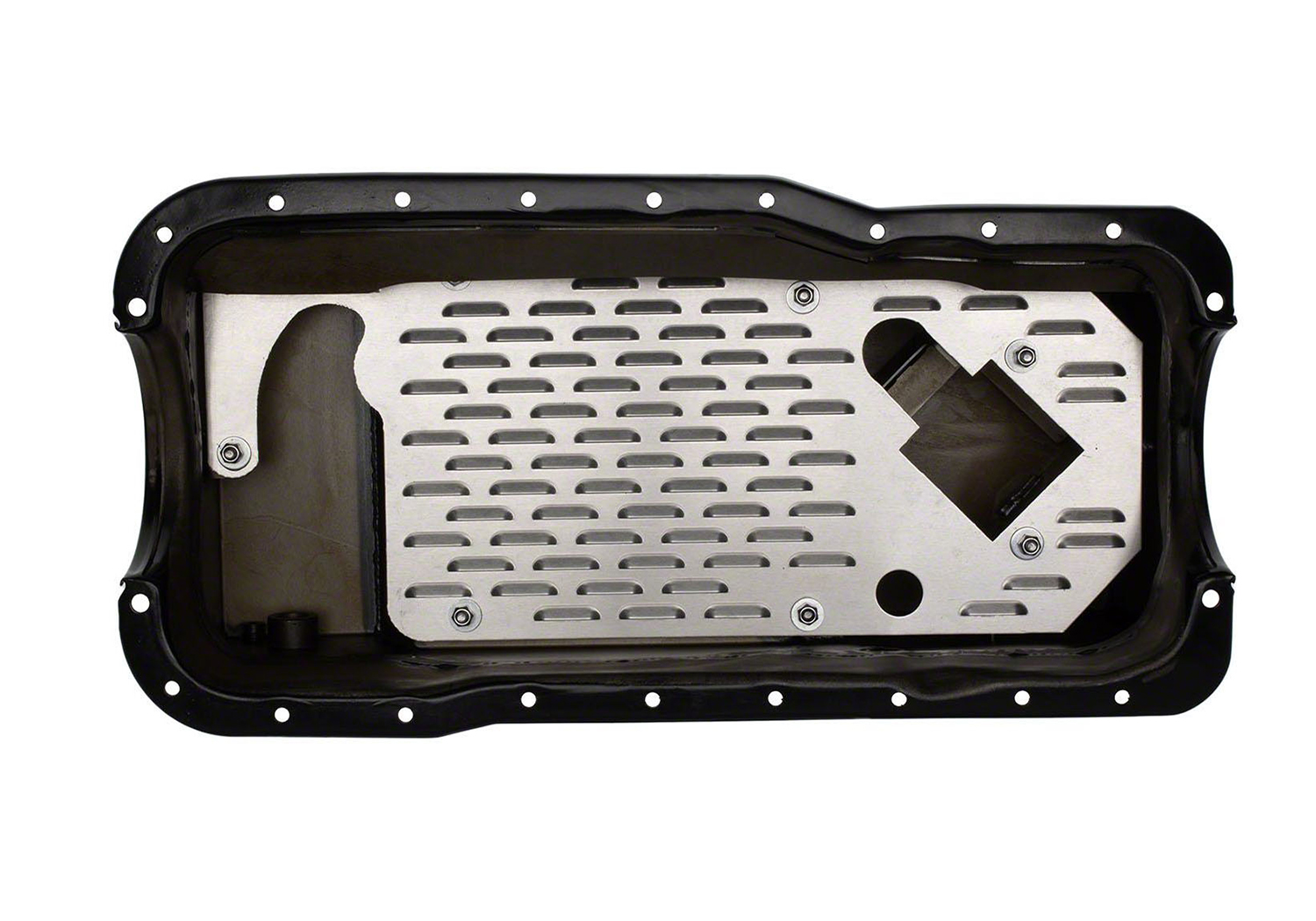

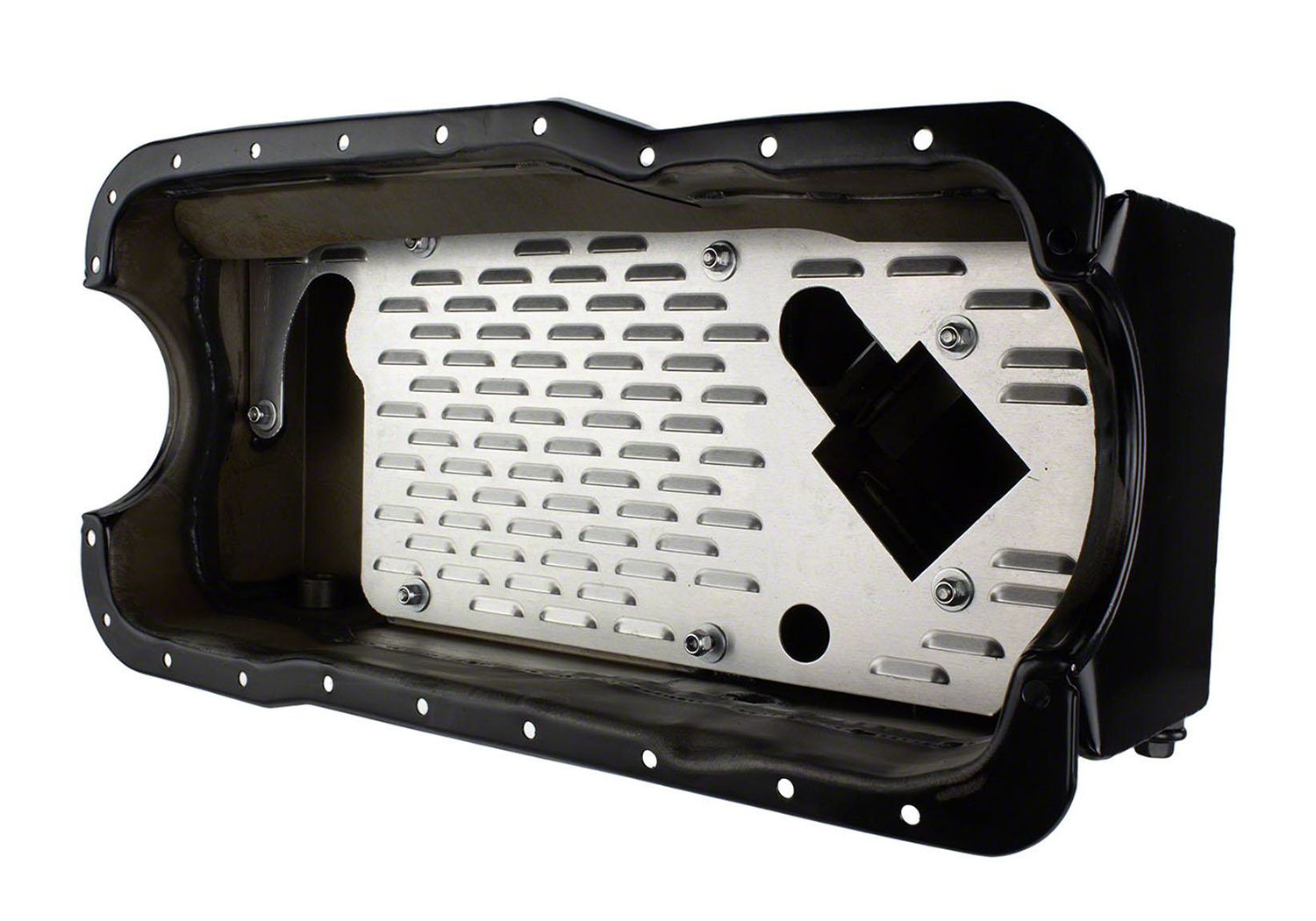

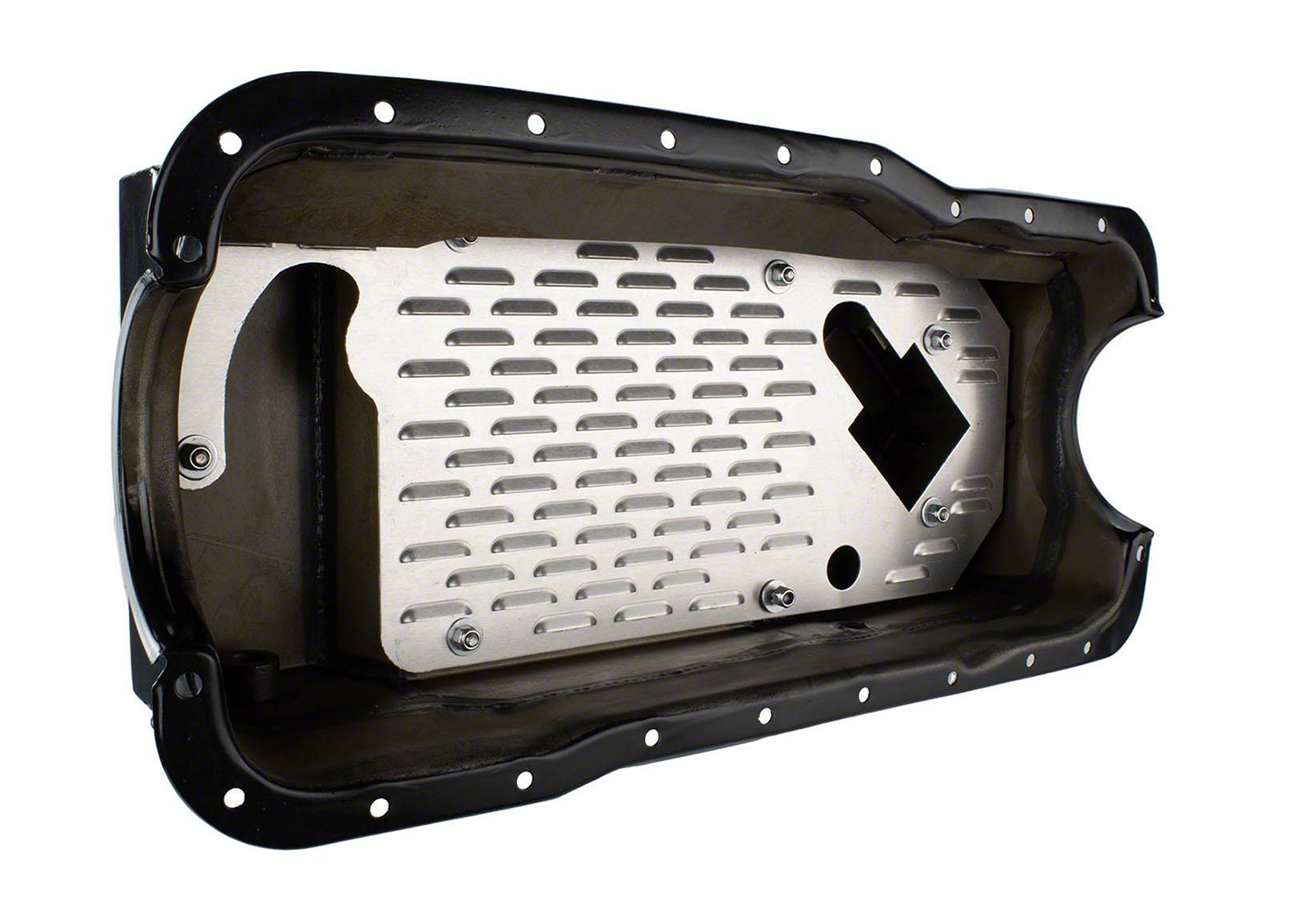

  • Full length bolt in louvered windage tray to control oil
  • Baffling and trap doors in the sump to keep the pickup submerged during performance driving
  • 7 quart capacity

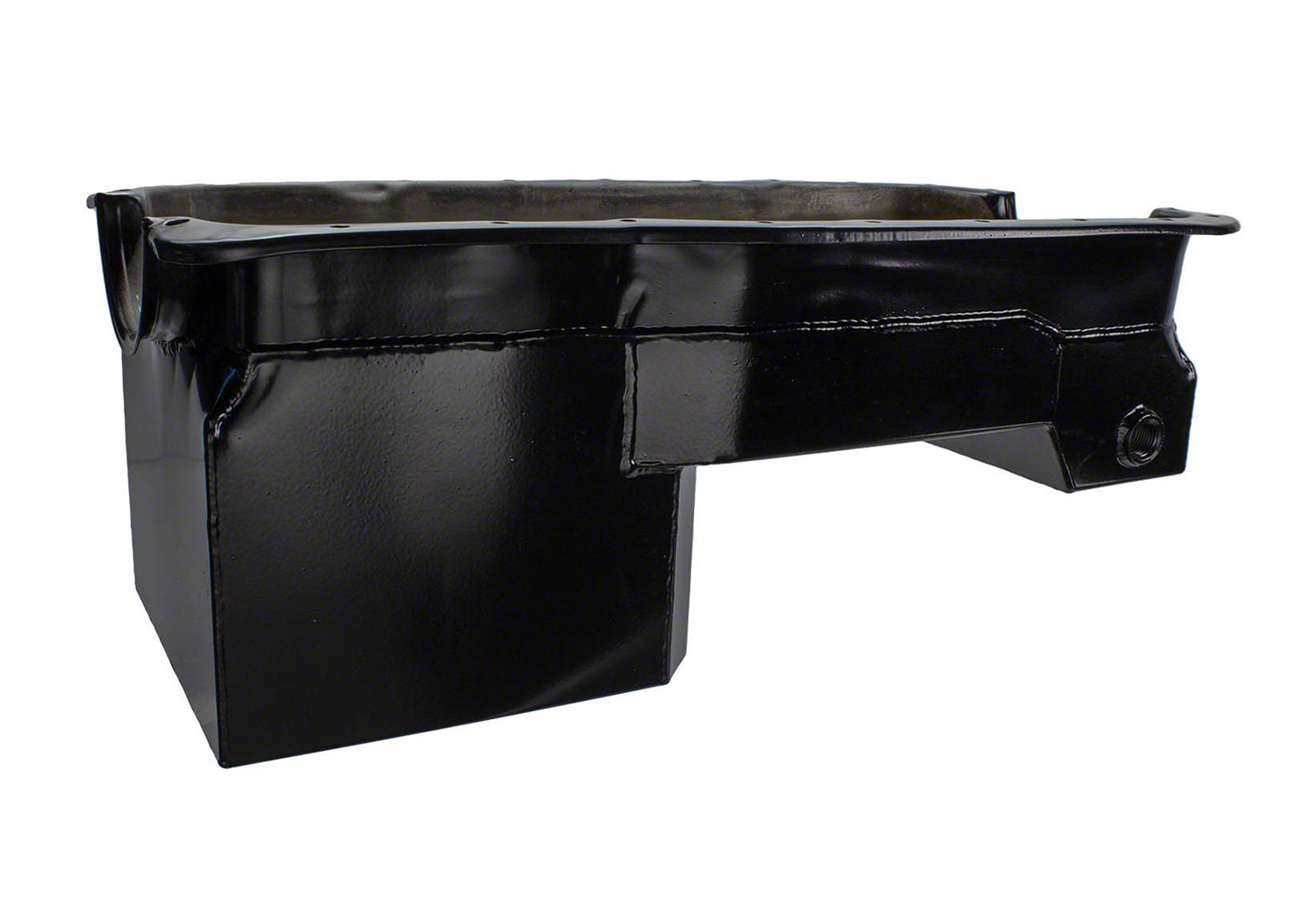

  • Rear sump depth is 9.1". Rear sump width is 8.7". Front sump depth is 6.7"

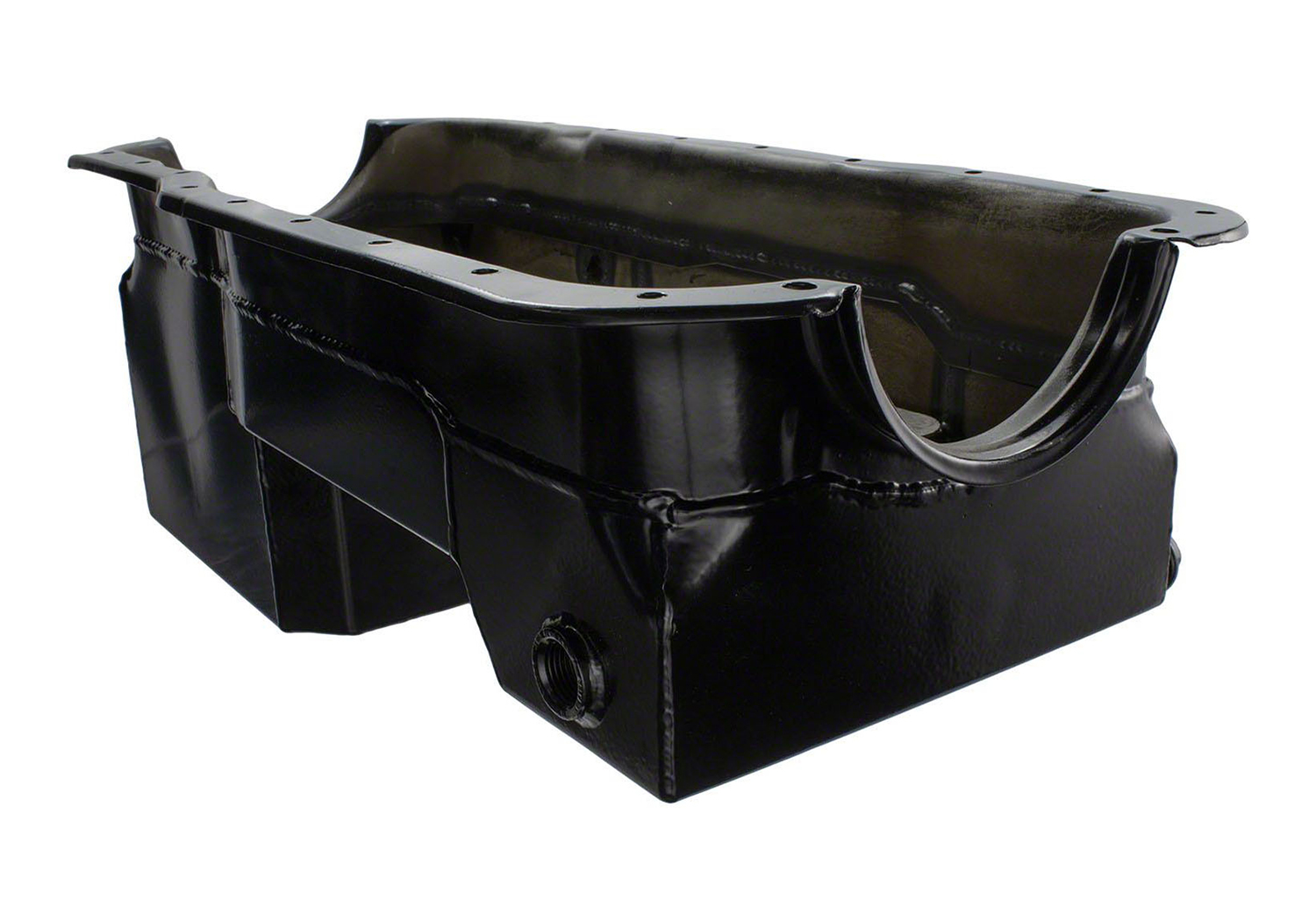

  • Includes 3/8" NPT bung to mount an oil temperature sending unit
  • Includes 3/8" NPT access hole to adjust oil pump spring pressure
  • Fits standard 302 Windsor block oil pan bolt pattern
  • Designed to clear 4-bolt main cap Ford Performance BOSS 302 blocks
  • Semi-gloss black powder coat finish
  • Laser cut and TIG welded in precision fixtures for consistent OEM level fit
  • Used on FRPP M-6007-Z363RT  Crate Engine
  • Use pickup M-6622-DRS302
Part Type
Engine: Oil Pumps/Pans
Warranty Availability
Not Available
Package Dimensions
17" x 9.75" x 24"
Package Weight
18.5 lb(s)
UPC Code
756122130490
Country of Origin
United States
