COYOTE CAST IRON RACE BLOCK

COYOTE CAST IRON RACE BLOCK
M-6010-M50X
Retail
$3,350.00
Sold in Units of
Each (1)
Instruction Sheet
Not Available
Proudly Made in the USA

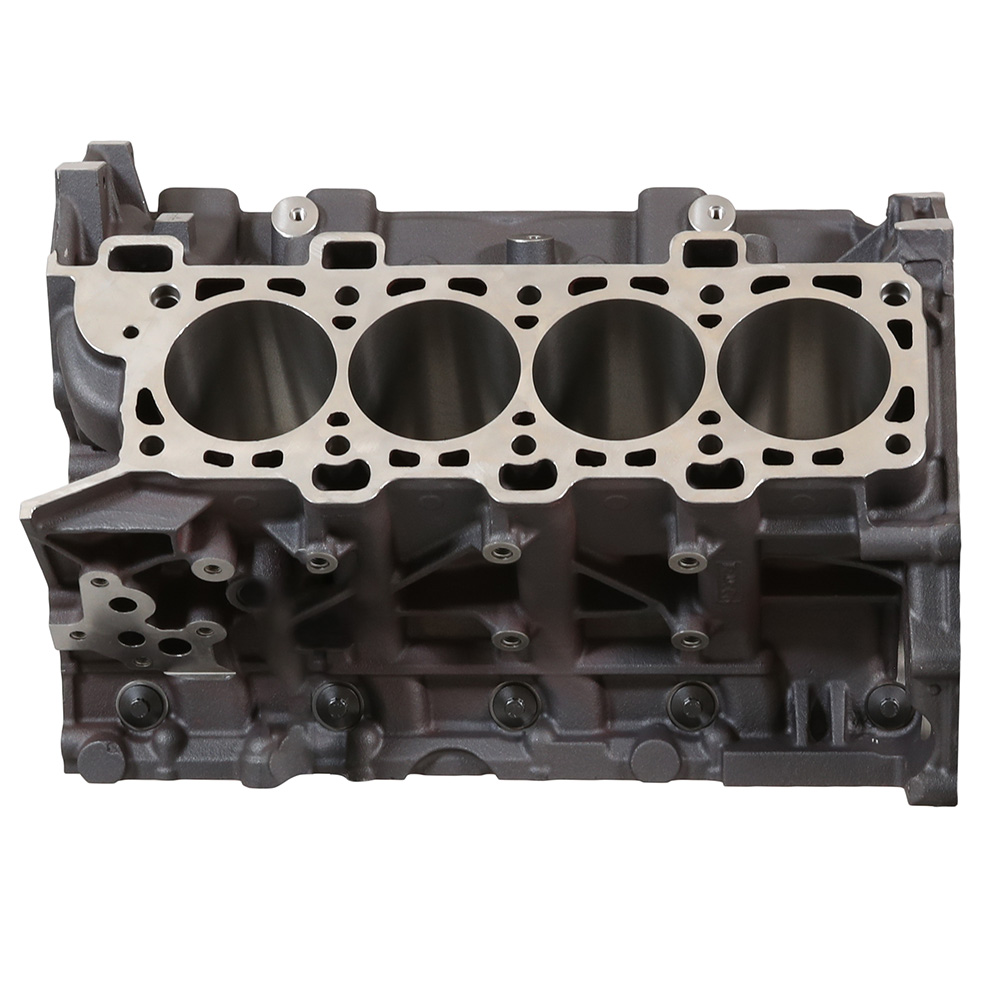

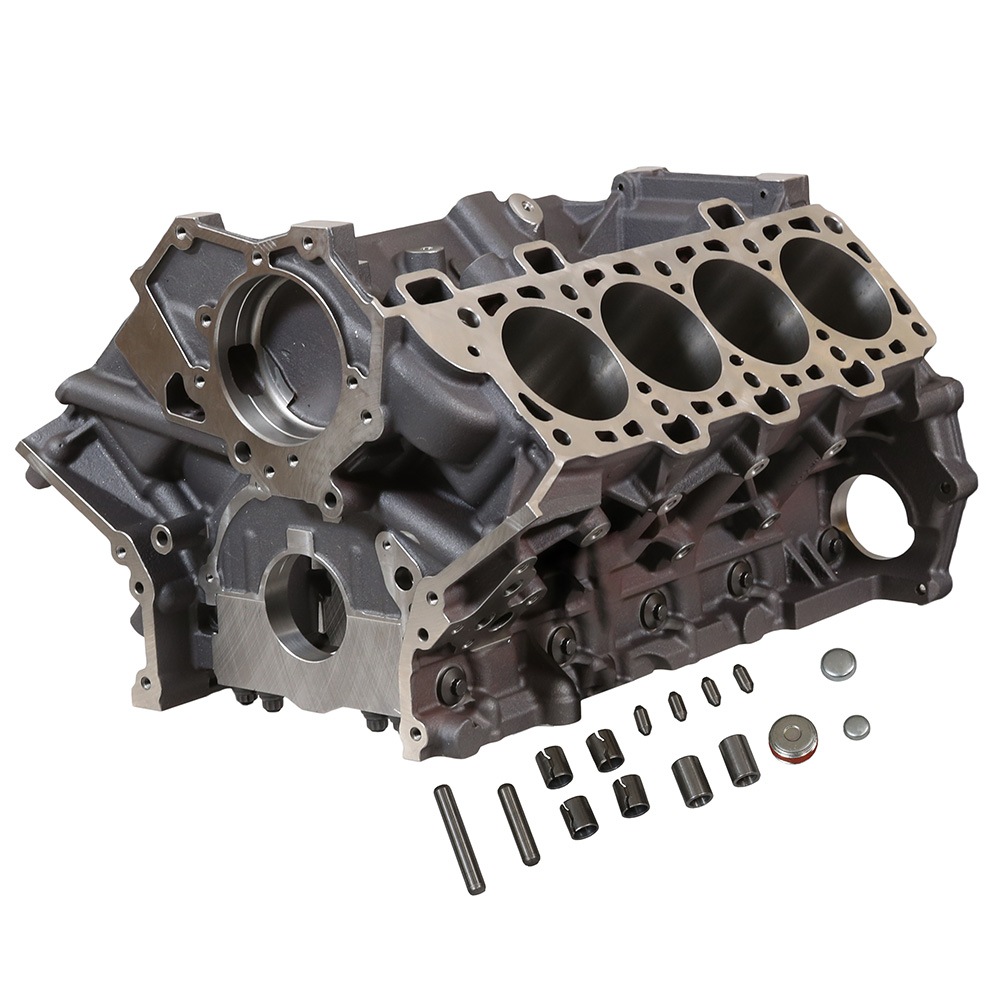

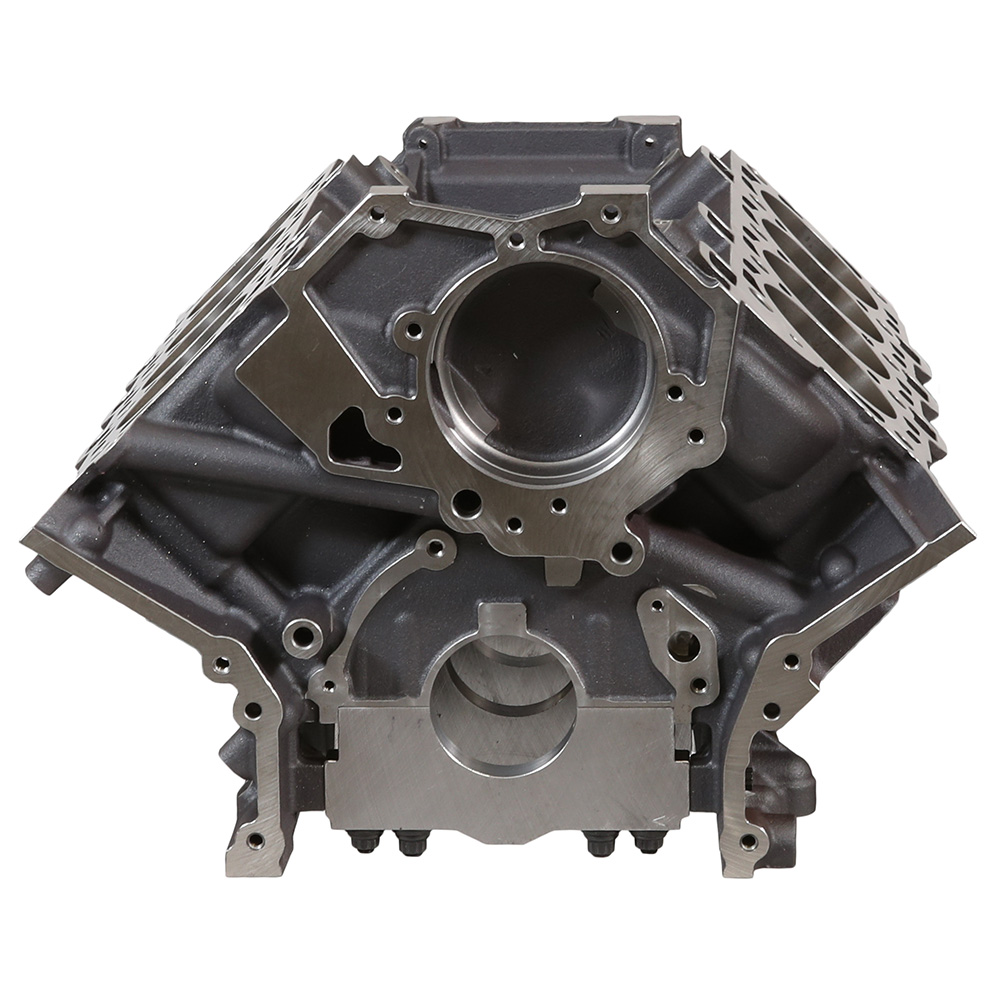

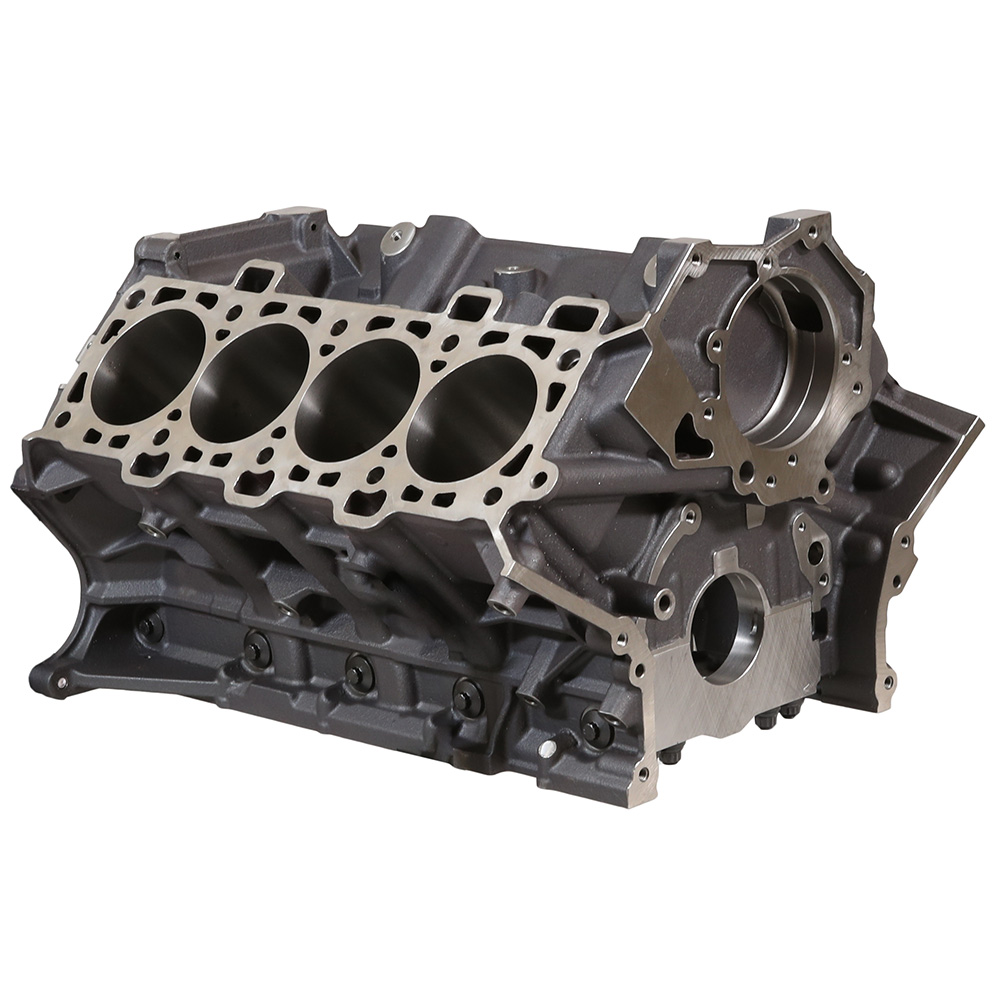

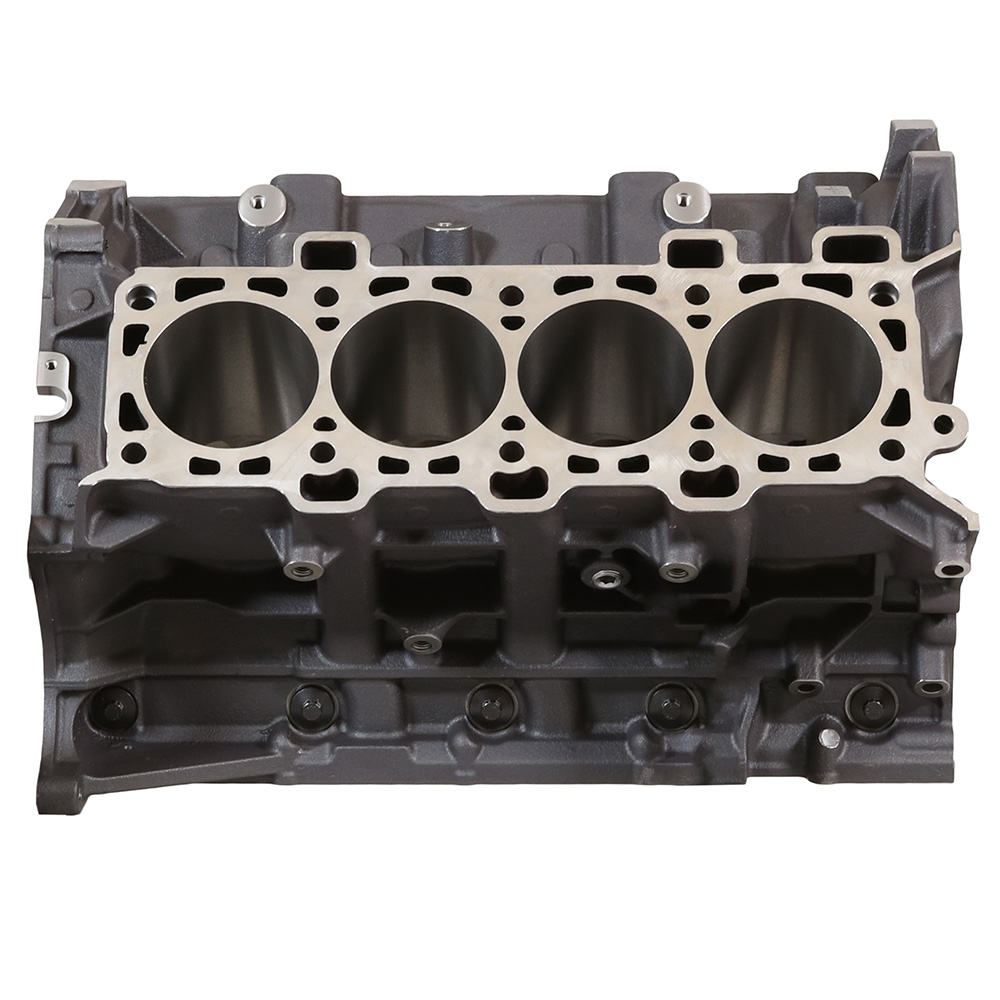

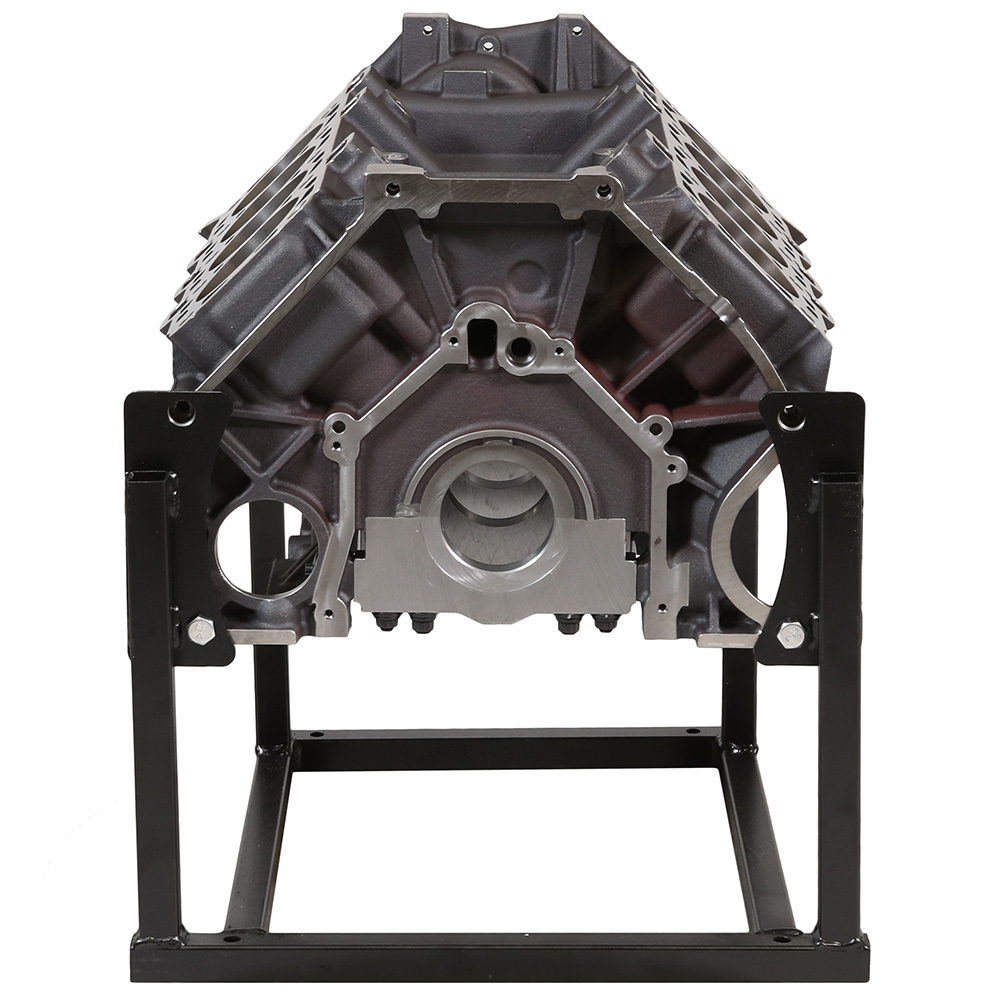

 Ford Performance cast iron version of the 2011-2017 Coyote engine block. Cast from a proprietary grade class 50 iron. Designed for extra strength for max-effort/boosted Coyote engine builds.
  • Deck height: 227 mm (8.937")
  • Finished bore: 92.2 mm (3.630")
  • Maximum bore; 95.0 mm (3.740")
  • Maximum stroke: 99 mm (3.897")
  • Maximum displacement: 5.6L
  • Standard Coyote 100 mm bore spacing
  • Lengthened bores for added strength
  • Revised deck design for added strength around the water jackets
  • Utilizes extended 12 mm head bolts M-6067-M501280
  • Billet steel 6 bolt main caps with ARP hardware
  • Accepts Gen 1 and Gen 2 Coyote 5.0L cylinder heads
  • Accepts Gen 1 and Gen 2 GT350 5.2L cylinder heads
  • Requires head gasket to match cylinder head
  • Installation of 'O-ring' style head gaskets recommended for 95 mm bore applications
  • Recommended forged steel crankshafts M-6303-M52B or M-6303-M52P
Part Type
Engine: Engine Blocks
Warranty Availability
Not Available
Package Dimensions
19.5" x 15" x 23"
Package Weight
228 lb(s)
UPC Code
756122014042
Country of Origin
United States
